M80-5001242

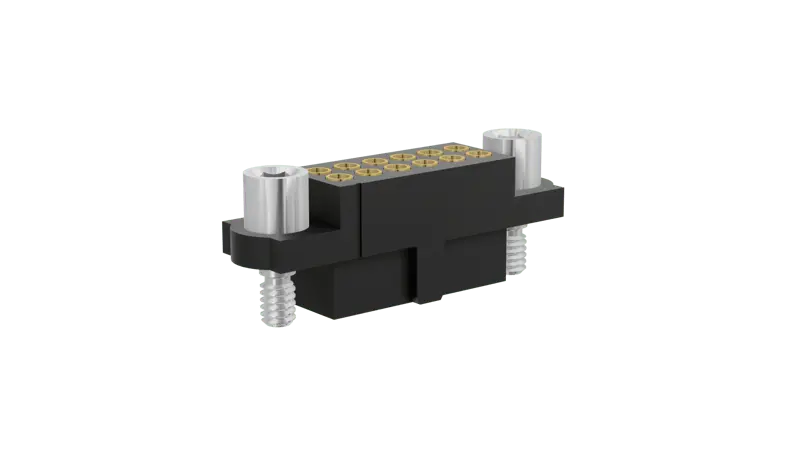

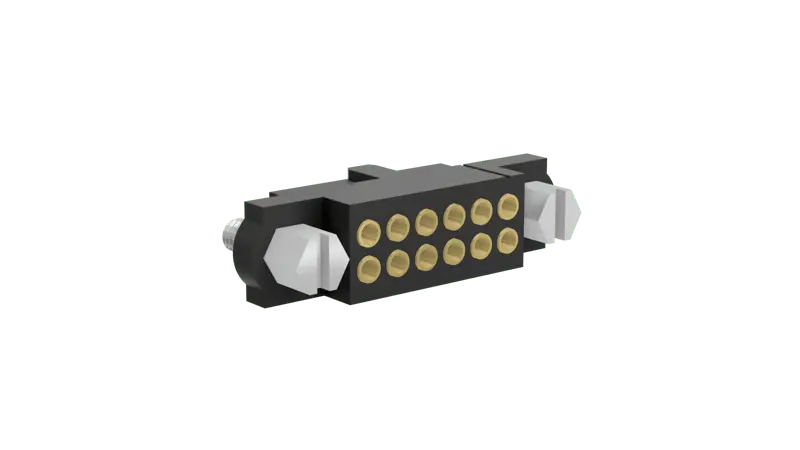

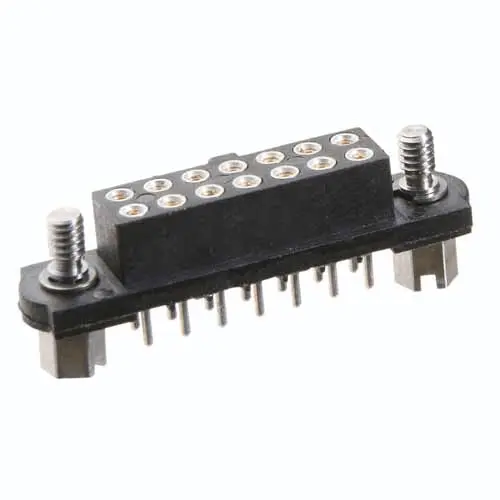

HarwinThe M80-5001242 is a 12-way, double-row rectangular connector from the M80 Datamate series with a 2mm pitch for board-to-board, cable-to-board, and cable-to-cable applications. ...
DESCRIPTION
The M80-5001242 is a 12-way (6+6), double-row rectangular connector from the 2mm pitch Datamate family, designed for low voltage interconnects in high-density electronic equipment. It features gold-plated contacts (finish code 42) for reliable performance and is fully shrouded and polarized to prevent mismating. This connector is rated for a current of up to 3.0A per contact when all contacts are loaded at 25°C, and a working voltage of 800V DC or AC Peak. With a durability of 500 operations and a wide operating temperature range of -55°C to +125°C, it is built for high-reliability applications. Common uses include board-to-board, cable-to-board, and cable-to-cable connections in various electronic systems.
Search Keywords: M805001242
SPECIFICATIONS
IN STOCK: 194
Can Ship immediately
Minimum Order Quantity: 12
Multiple: 12
Factory Lead-Time 10 Weeks
Price (USD)
Tools/3D Models
Datasheet
