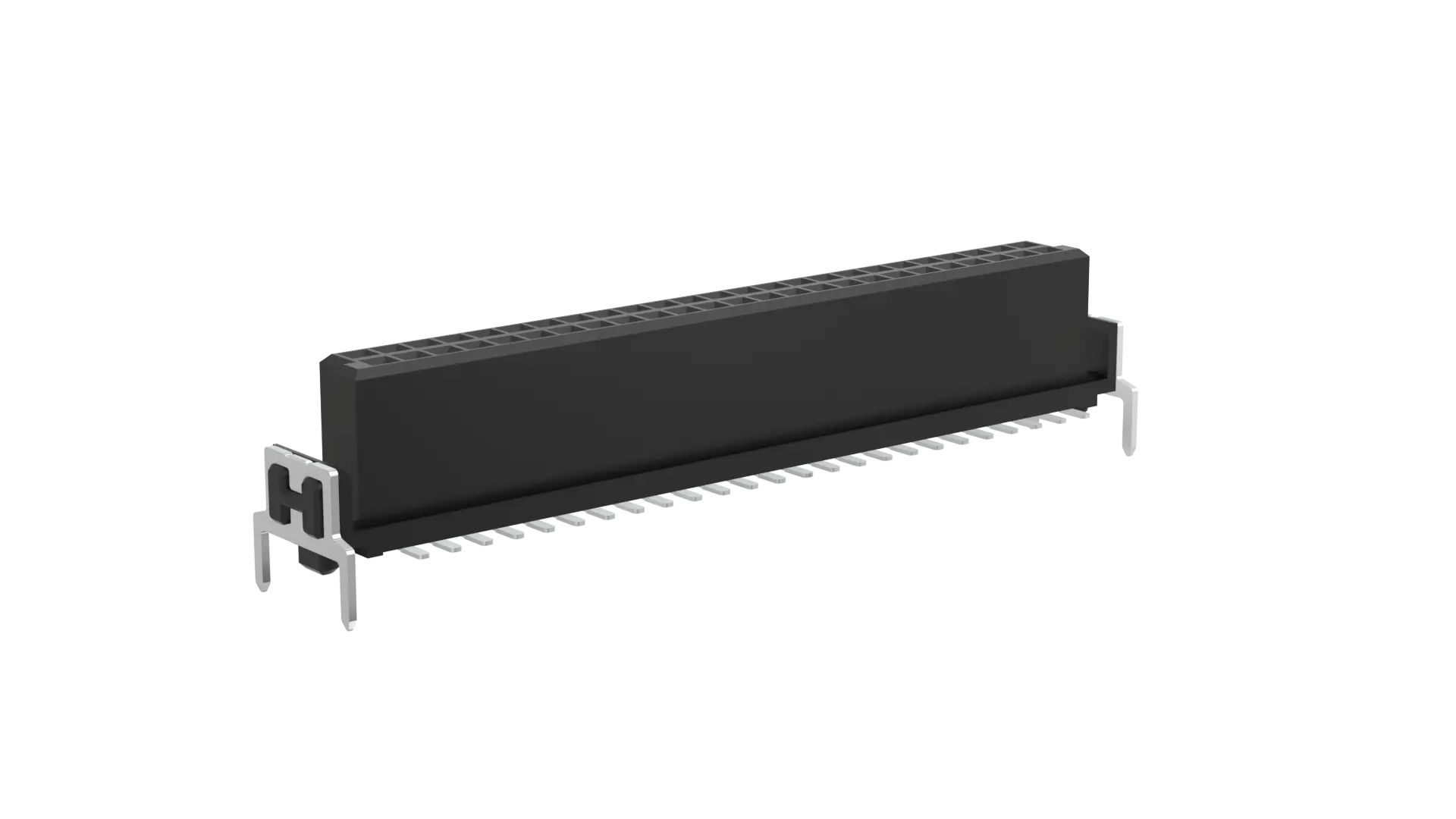

M80-5101442
The M80-5101442 is a 14-contact, double-row, 2mm pitch rectangular connector for low-voltage signal applications. ...
DESCRIPTION
The M80-5101442 is a 14-position, double-row rectangular connector from the M80 series, designed for low-voltage signal connections in high-density electronic equipment. This fully shrouded connector features a 2mm pitch and is polarized to prevent mismating, with contacts that have a gold finish on the contact area and 100% tin on the tails for reliable termination. It supports a current of up to 3.0A per contact when all contacts are loaded at 25°C and has a working voltage of 800V DC or AC Peak. The connector is rated for 500 mating cycles and operates over a wide temperature range of -55°C to +125°C. It is ideal for board-to-board, cable-to-board, and cable-to-cable interconnections where space and reliability are critical.
Search Keywords: M805101442
SPECIFICATIONS
IN STOCK: 0
On Order:
165
can ship 11/9/26
Minimum Order Quantity: 11
Multiple: 11
Factory Lead-Time 13 Weeks
Price (USD)
Tools/3D Models
Product Guides
Datasheet
