M80-8510642 by harwin

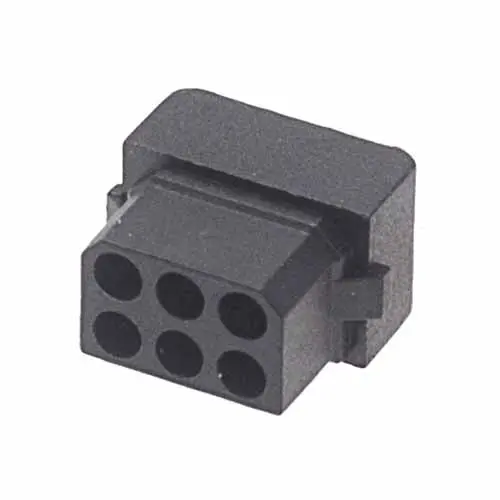

Image is representational - see mfr. specs

M80-8510642

Harwin

The M80-8510642 is a 6-way, 2mm pitch, double-row rectangular connector for low-voltage signal interconnections in high-density electronic equipment. ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The M80-8510642 is a 6-way, double-row rectangular connector from the M80 series, designed for reliable low-voltage signal connections. It features a compact 2mm pitch, is fully shrouded, and polarized to prevent mismating. The contacts feature a gold finish on the contact area with 100% tin on the tails, supporting a current of up to 3.0A per contact and a working voltage of 800V AC/DC. With a high durability of 500 mating cycles and a wide operating temperature range of -55°C to +125°C, this connector ensures robust performance. It is ideal for high-density board-to-board, cable-to-board, and cable-to-cable applications where space and reliability are critical.

Search Keywords: M808510642

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Harwin
Part No:
M80-8510642
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
GB
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
26

IN STOCK: 43

Can Ship immediately

On Order: 156   can ship 5/18/26

Minimum Order Quantity: 26

Multiple: 26

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
26
$4.69
52
$4.51
104
$4.18
260
$4.10
520
$3.72
1,014
$3.54
2,522
$3.52
5,018 +
$3.50
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides
