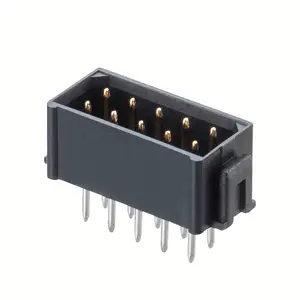

M80-8881005 by harwin
Image is representational - see manufacturer specifications
Harwin Authorized Distributor

M80-8881005

The M80-8881005 is a 10-contact, double-row, 2mm pitch rectangular connector designed for low-voltage signal applications. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The M80-8881005 is a 10-contact, double-row rectangular connector from the M80 series, intended for use as a low-voltage connector in high-density electronic equipment. This fully shrouded connector features a 2mm pitch and gold-plated contacts for reliable performance. It is rated for a current of up to 3.0A per contact when all contacts are loaded at 25°C and has a working voltage of 800V DC or AC Peak. The connector is designed for high-reliability applications, with a mechanical durability of 500 mating cycles and an operating temperature range of -55°C to +125°C. Its polarized design prevents mis-mating, making it suitable for board-to-board, cable-to-board, and cable-to-cable interconnections.

Search Keywords: M808881005

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Harwin
Part No:
M80-8881005
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
GB
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1

IN STOCK: 191

Ships today, if you order in

Minimum Order Quantity: 5

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
5
$8.03
25
$6.58
100
$5.99
250
$5.61
500
$5.35
1,000
$5.04
2,500
$5.03
5,000 +
$5.01
Log in for special pricing

Tools/3D Models

Product Guides

Accessories

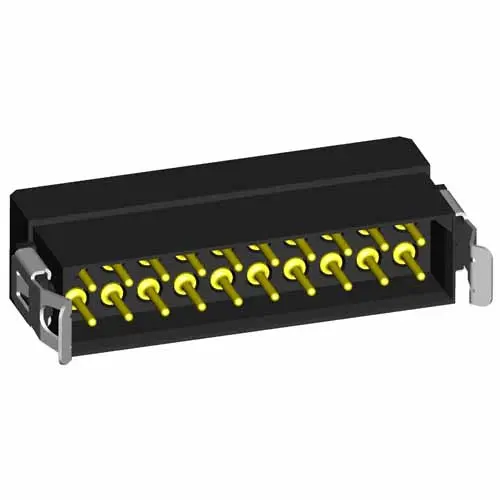

M80-6651042

5+5 Pos. Male Dil Horizontal Smt Conn. No Latches Rohs Compliant: Yes |Harwin M80-6651042

M80-7531042

5+5 Pos. Male DIL Vertical Throughboard Conn. Latches RoHS Compliant: Yes

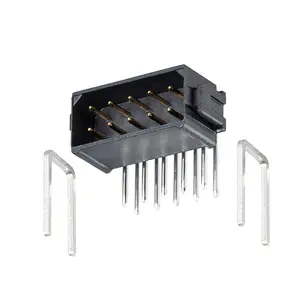

M80-8411042

Datamate L-Tek DIL Male Horizontal 3mm PC Tail Connector, unlatched, selective gold + tin, ...

M80-8531042

M80-8531042 is a 10-position, double-row, 2mm pitch female crimp connector for high-reliab ...

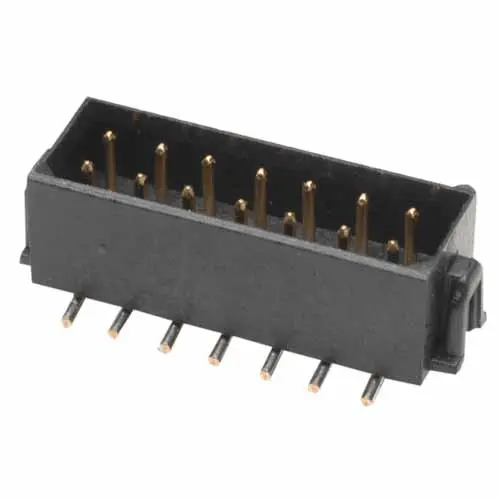

M80-6661042

Datamate L-Tek DIL Male Horizontal SMT Connector, latched, selective gold + tin, 5+5 conta ...

M80-8121005

Datamate L-Tek DIL Male Small Bore Crimp Connector, latched, gold, 5+5 contacts

M80-8131005

Conn Datamate HDR 10 POS 2mm Crimp ST Cable Mount Bag

M80-8261042

Datamate L-Tek DIL Male Vertical SMT Connector, unlatched, selective gold + tin, 5+5 conta ...

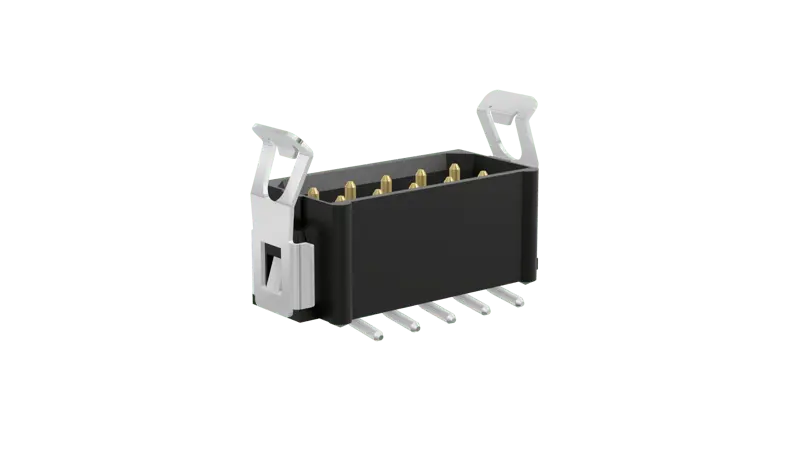

M80-8281042

Datamate L-Tek DIL Male Vertical SMT Connector, latched, selective gold + tin, 5+5 contact ...

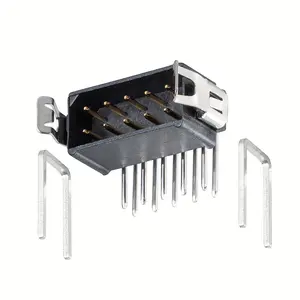

M80-8511042

Conn Datamate Header 10 POS 2mm Solder RA Through Hole

M80-8541042

Conn Datamate Header 10 POS 2mm Solder ST Through Hole

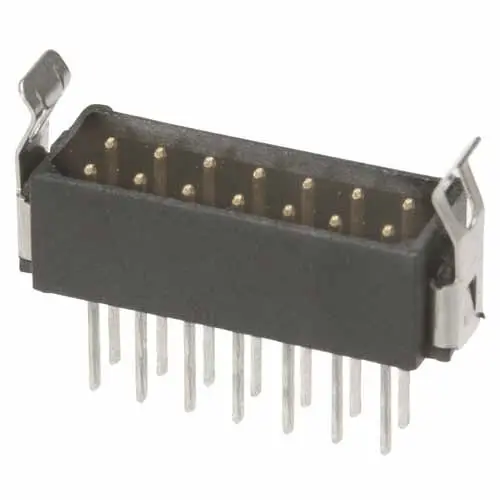

M80-8691022
