DF62W-2EP-2.2C by hirose electric americas

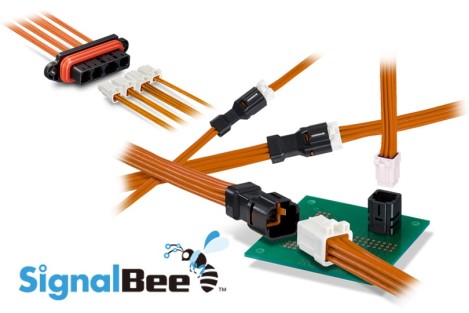

Image is representational - see mfr. specs

DF62W-2EP-2.2C

The DF62W-2EP-2.2C is a 2-position, water-resistant, slim in-line crimp plug designed for internal wiring applications. ...

Datasheet

RoHS Compliant

Bag Packaging

End of Life: Final orders must be placed by 08/31/2026

DESCRIPTION

The DF62W-2EP-2.2C is a 2-position crimp plug from the DF62W Series, designed as a water-resistant, slim in-line connector for internal wiring. This plug features a compact housing with key dimensions of 7.5mm (A) and 6.7mm (B), and is specifically designed to accommodate cables with an outer jacket diameter from 1.4mm to 1.6mm. As part of the DF62W series, it offers IP67-rated water resistance when mated, a secure positive-lock mechanism for reliable connections, and a smooth, tangle-free contour ideal for routing through narrow conduits. The robust, space-saving design makes it suitable for various applications requiring reliable internal wiring in constrained or potentially wet environments, such as robotics, e-bikes, and consumer electronics.

Product Highlights:

Potential Applications:

Search Keywords: DF62W2EP22C

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Hirose Electric Americas

Part No:

DF62W-2EP-2.2C

Alias/AKA:

544-1003-0-00

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8538906000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
