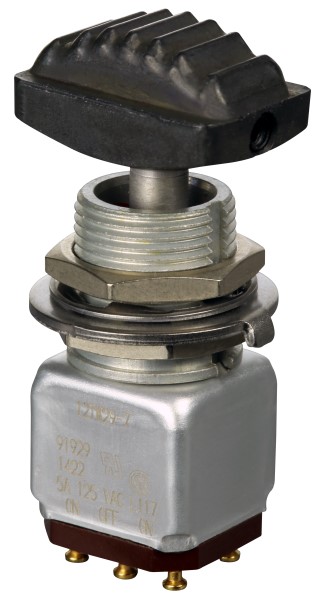

Image is representational - see manufacturer specifications
Honeywell Authorized Distributor

12TW8-1A

MICRO SWITCH™ Miniature Toggle Switches: TW Series, Double Pole Double Throw (DPDT) 3 Position (On - Off - On), Gold Contacts, Solder Terminals, 15/32 Inch Bushing, Mushroom-Style Locking Lever (Locked In Three Positions) ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The HONEYWELL part 12TW8-1A is a MICRO SWITCHâ„¢ Miniature Toggle Switch from the TW Series, featuring a Double Pole Double Throw (DPDT) configuration with 3 positions (On - Off - On). This high-quality switch is equipped with gold contacts for reliable performance, solder terminals for easy installation, and a 15/32 inch bushing for secure mounting. The Mushroom-Style Locking Lever ensures the switch stays in position, with the ability to be locked in three different positions. Ideal for a variety of electronic applications, this toggle switch offers precision control and durability.

Product Highlights:

  • Save space and weight
  • SPDT and DPDT circuitry
  • Temperature range: -85 F to +160 F (-65 C to +71 C)
  • Sealed bushing versions
  • Choice of in. or 15/32 in. bushing
  • Color tab available on 15/32 in. bushing
  • UL recognized

Potential Applications:

  • Industrial machinery and equipment
  • Military and commercial aviation
  • Construction equipment
  • Test instruments
  • Agricultural machinery
  • Process control
  • Medical instrumentation

Search Keywords: 12TW81A

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
12TW8-1A
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536508099
COO:
US
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Pole Throw Configuration:
2P2T (DPDT)
Switch Configuration:
On Off On
Contact Rating @ Voltage:
5 A
Actuator Style:
Locking Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight
Terminal Type:
Solder
Dimension:
14.61 x 13.59 x 60.2 mm
Operating Temperature:
-65 to 72 °C

IN STOCK: 0

MOQ for out of Stock Qty: 13

Factory Lead-Time 33 Weeks

Price (USD)

Qty
Unit Price
13
$491.99
25
$270.05
38
$183.27
50 +
$179.61
