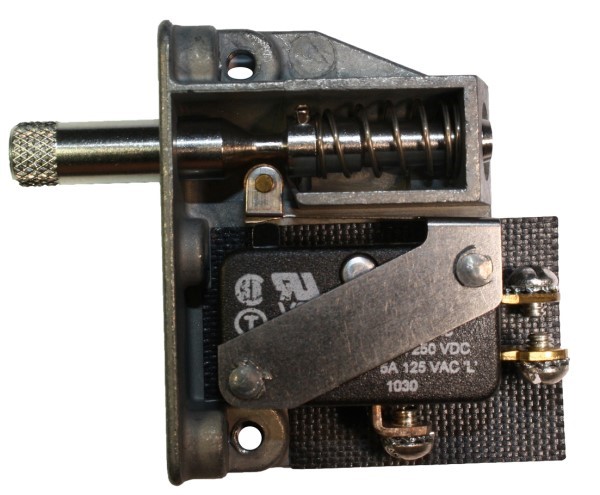

13AC1 by honeywell

13AC1

Honeywell

MICRO SWITCH™ Basic Switches: AC Series, Door Switch, Single Pole Double Throw (SPDT), 15 A at 250 Vac, Rod Actuator, Silver Contacts, Screw Termination ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The HONEYWELL part 13AC1 is a MICRO SWITCH„¢ Basic Switch that is specifically designed for door switch applications. It features a Single Pole Double Throw (SPDT) configuration, allowing for versatile switching capabilities. With a current rating of 15 A at 250 Vac, it is capable of reliable performance in high voltage applications. The switch is activated by a rod actuator, providing a straightforward and effective means of triggering the switch. The silver contacts ensure superior conductivity and durability. It is equipped with screw termination for secure and convenient wiring connections. Trust the HONEYWELL part 13AC1 to deliver consistent and reliable performance in door switch applications.

Product Highlights:

  • Automatically cuts power when service door or drawer is opened
  • Choice of momentary, maintained or pull-to-cheat actuation
  • Versatile mounting bracket for side or end mounting
  • Current rating ranges from 5 A to 25 A
  • Available with one or two SPDT switches
  • UL recognized versions available
  • Choice of termination

Potential Applications:

  • Appliances
  • Vending machines
  • Office equipment
  • Computer/business equipment
  • Test instruments
  • Medical/dental equipment
  • Communications equipment
  • HVAC equipment

Search Keywords: 13AC1

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
13AC1
RoHS:
Yes
HTS:
85365000
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
200
Type:
Door Interlock
Actuator Style:
Rod
Pole Throw Configuration:
SPDT
Maximum Current Rating:
15@250VAC A
Terminal Type:
Screw
Operating Temperature:
-55 to 149 °C
IP Rating:
N/A
Dimension:
56.31 x 12.7 x 45.97 mm
Switch Configuration:
N.O./N.C.
Body Orientation:
Straight

IN STOCK: 93

Can Ship immediately

Factory Lead-Time 5 Weeks

Price (USD)

Qty
Unit Price
1
$77.137
5
$74.500
10
$70.617
15
$70.256
25
$69.226
50 +
$59.174
