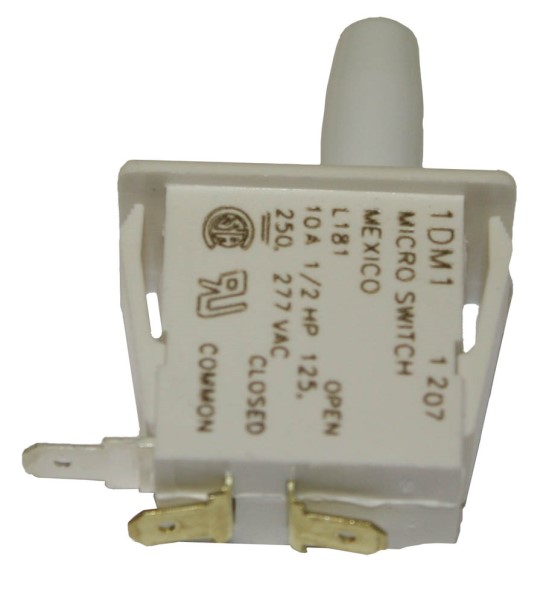

1DM1 by honeywell

1DM1

Honeywell

MICRO SWITCH™ Basic Switches: DM Series, Snap-in Panel Mount, Single Pole Double Throw (SPDT), 10 A at 277 Vac, Bullet Nose Plunger Actuator, Silver Contacts, Angled Formed Quick Connect Termination ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The HONEYWELL part 1DM1 is a MICRO SWITCH„¢ Basic Switch from the DM Series. This snap-in panel mount switch features a Single Pole Double Throw (SPDT) configuration with a 10 A rating at 277 Vac. It is designed with a bullet nose plunger actuator and silver contacts for reliable performance. The switch is equipped with angled formed quick connect termination for easy installation.

Product Highlights:

  • Attractive, rugged snap-in panel mount design - easy installation
  • Choice of momentary, alternate push-pull or pull-to-cheat operation
  • Quick-connect terminals
  • Expected mechanical life: 1 million operations, 95% survival
  • UL recognized file #E22779, CSA certified file #LR4442

Potential Applications:

  • Appliance door lights
  • Door interlocks
  • Stop/start switches

Search Keywords: 1DM1

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
1DM1
RoHS:
Yes
HTS:
8536509065
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Door Interlock
Actuator Style:
Bullet Nose Plunger
Pole Throw Configuration:
SPDT
Maximum Current Rating:
10@277VAC@(CSA/UL) A
Terminal Type:
Quick Connect
Operating Temperature:
-37 to 82 °C
IP Rating:
N/A
Dimension:
38.1mm x 17.27mm x 49.78mm
Switch Configuration:
N.O./N.C.
Body Orientation:
Straight

IN STOCK: 1,863

Ships today, if you order in

On Order: 4,000   can ship 12/8/25

Minimum Order: 5

Factory Lead-Time 2 Weeks

Price (CAD)

Qty
Unit Price
5
$16.997
25
$16.599
50
$15.865
100
$15.160
250
$14.761
500
$14.579
1,000 +
$14.501
Suppliers Standard Package
Log in for special pricing
Click for Quote
