1SE1-3 by honeywell
Image is representational - see manufacturer specifications
Honeywell Authorized Distributor

1SE1-3

MICRO SWITCH™ Miniature Environmentally Sealed Basic Switches: SE Series, Single Pole Double Throw (SPDT), 5 A at 250 Vac, Stainless Steel Pin Plunger, (3) 914 mm [36 in] Lead Wire Termination (20 Gage), -53 °C to 105 °C [-65 °F to 221 °F] Temperature Range ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging

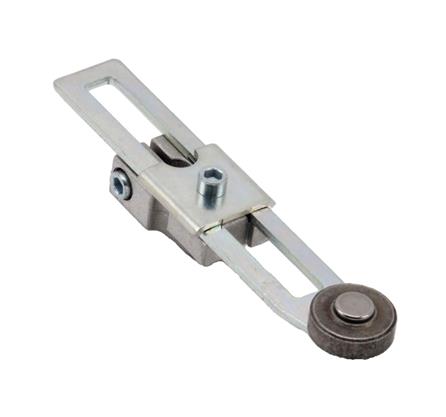

Accessories
Certificate of Compliance

DESCRIPTION

Snap Action Switches, which are also known as micro switches, is a type of momentary contact switch that can rapidly change positions responding to small movements. A Snap Action Switch operates at a rapid speed as it takes very little force or stimulus to operate. This SPDT Snap Switch is widely used in aircraft, ordinance, moist or dusty industrial environments.

1SE1-3 Snap Action Switch from Honeywell comes with SPDT circuitry and a power load switching capability of 7A. This Honeywell switch has a high temperature tolerance up to 149 °C and comes in a very small package size. This environment-sealed basic switch comes with a choice of actuation for design flexibility and precision functionality.

Product Highlights:

  • Choice of actuation
  • Temperature tolerance to 105 °C [221 °F]
  • High temperature construction for use to 149 °C [300 °F]
  • Watertight seal per MIL-PRF-8805, enclosure design symbol 3
  • Very small package size
  • Power load switching capability to 7 A

Search Keywords: 1SE13

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
1SE1-3
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
85365000
COO:
US
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Mounting:
Through Hole
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Steel/Plunger
Contact Rating @ Voltage:
5@250VAC 30VDC A
Maximum Movement Differential:
0.1 mm
Operating Force:
4.73 N
Termination Style:
Wire Lead
Dimension:
22.25 x 8.79 x 18.92 mm
Body Orientation:
Straight
IP Rating:
N/A

IN STOCK: 66

Ships today, if you order in

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
1
$147.70
5
$142.64
10
$140.37
20
$140.02
50
$139.67
100 +
$139.32
Log in for special pricing
