1TP65-5 by honeywell
Image is representational - see manufacturer specifications
Honeywell Authorized Distributor

1TP65-5

The 1TP65-5 is a single-pole, double-throw (SPDT), 3-position rocker switch with screw terminals for power-duty applications. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

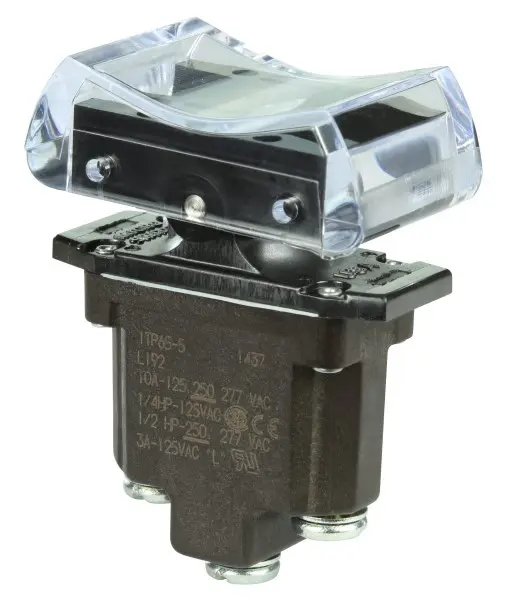

The 1TP65-5 is a TP Series 3-position rocker switch designed for power-duty applications. This single-pole, double-throw (SPDT) switch features screw terminals for secure connections and is configured for above-panel mounting. It handles a resistive load range from 0.5 A to 15 A at 0.5 Vdc to 28 Vdc and is UL recognized for 10 A at up to 277 Vac. Operating reliably across a wide temperature range of -54 °C to +71 °C, this environmentally sealed switch is ideal for industrial machinery, military aviation, construction equipment, and test instruments.

Search Keywords: 1TP655

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
1TP65-5
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
85365080
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Mounting:
Panel Mount
Pole Throw Configuration:
1P2T (SPDT)
Switch Configuration:
On Off On
Contact Rating @ Voltage:
372.85@(CSA/UL) A
Actuator Style:
Rocker
Actuator Color:
N/A
Bezel Color:
N/R
Illumination:
N/R
Terminal Type:
Screw
Body Orientation:
Straight

IN STOCK: 8

Ships today, if you order in

MOQ for out of Stock Qty: 13

Factory Lead-Time 19 Weeks

Price (USD)

Qty
Unit Price
1
$383.80
5
$351.09
10
$336.62
13
$333.31
25
$329.99
38
$326.74
50 +
$323.50
