412SX21-T by honeywell

412SX21-T

Honeywell

MICRO SWITCH™ Subminiature Basic Switches: SX Series, Single Pole Double Throw (SPDT), 1 A at 125 Vac, Gold-Plated Contacts, Pin Plunger Actuator, Solder Termination ...

Datasheet
RoHS Compliant
Packaging

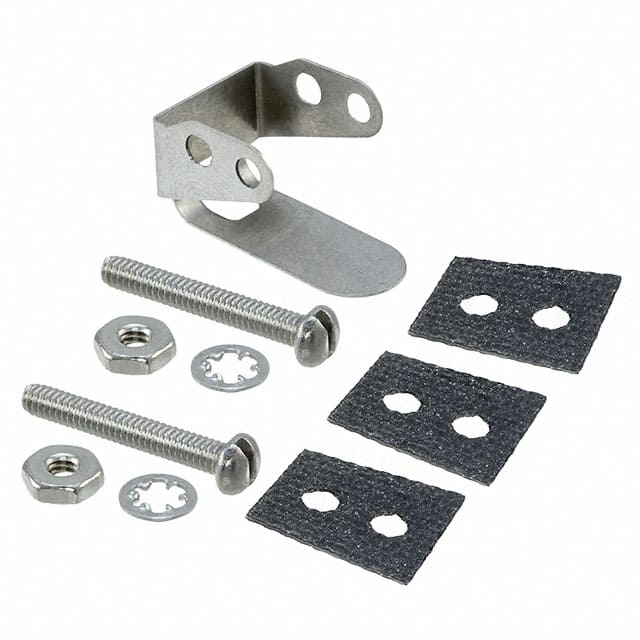

Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The SX series 412SX21-T Honeywell subminiature basic micro switches are used for simple or precision on/off application needs. A Snap Action Switch is a type of momentary contact micro switch which operates at rapid speed as it takes very little force or stimulus to operate. These small, precision snap-action switches are ideal in places where savings in space and weight are important and are mostly used in aerospace, appliances, computer/business equipment, test instruments, timing devices, medical and dental equipment , vending machines, HVAC equipment, office equipment, manually operated devices and valves.

This Honeywell Switch comes with a choice of actuation, electrical termination and operating characteristics. The 412SX21-T has a log operating life and features elongated mounting hole for easier and more accurate mounting.

Product Highlights:

  • Long operating life
  • Elongated mounting hole for easier, more accurate mounting
  • Long electrical life up to 25,000@(CE/KEMA) cycles
  • Ampere rating: 1 A
  • Maximum AC Voltage Rating: 250@(CE/KEMA) V
  • Maximum DC Voltage Rating: 30 V
  • Maximum pre-travel: 0.51 mm
  • Minimum over-travel: 0.1 mm
  • Choice of electrical termination (solder, quick connect, PCB)
  • Choice of actuation (plunger, as well as a variety of integral and auxiliary actuators)

Potential Applications:

  • Aerospace
  • Appliances
  • Vending machines
  • Timing devices
  • Office equipment
  • Computer/business equipment
  • Test instruments
  • Medical/dental equipment
  • Communications equipment
  • HVAC equipment
  • Manually operated devices
  • Valves

Search Keywords: 412SX21T

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
412SX21-T
RoHS:
Yes
HTS:
85365000
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Mounting:
Through Hole
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Plastic/Pin Plunger
Contact Rating @ Voltage:
1 A
Maximum Movement Differential:
0.08 mm
Operating Force:
1.39 N
Termination Style:
Solder
Dimension:
12.7 x 5.08 x 13.21 mm
Body Orientation:
Straight
IP Rating:
N/A

IN STOCK: 439

Ships today, if you order in

Factory Lead-Time 6 Weeks

Price (CAD)

Qty
Unit Price
1
$49.216
5
$45.327
10
$44.836
25
$44.622
50
$42.080
100
$36.629
250 +
$35.541
