RECOMMENDED REPLACEMENT

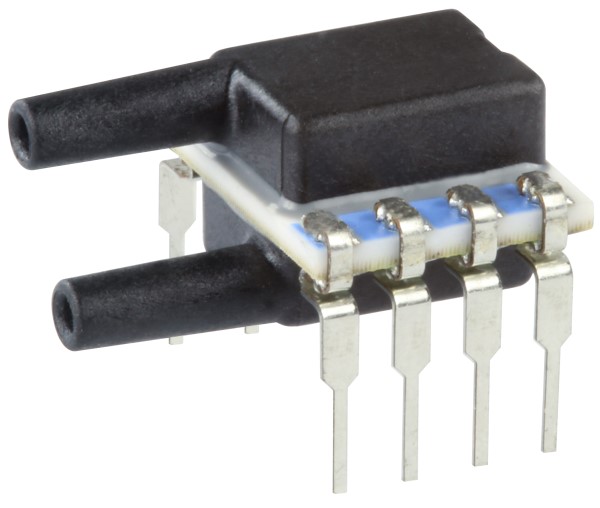

Image is representational - see manufacturer specifications
ASDXRRX005ND7A5
Pressure Sensor -5inH2O to 5inH2O Differential 8-Pin DIP ...
RoHS Compliant
Discontinued & Replaced
DESCRIPTION
Pressure Sensor -5inH2O to 5inH2O Differential 8-Pin DIP
Product Highlights:
- Output options: I2C- or SPI-compatible 12-bit digital
- Precision ASIC conditioning and temperature compensated over 0 °C to 85 °C [32 °F to 185 °F] temperature range
- Low operating voltage
- Absolute, differential and gage types
- Pressure ranges from 10 inches H2O to 100 psi
- Standard calibrations in inches H2O, psi, cm H2O, mbar, bar, kPa
- Total error band of ±2.0% of full scale span maximum
- RoHS compliant
Search Keywords: ASDXRRX005ND7A5
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
ASDXRRX005ND7A5
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
9026204000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:
1
Mounting:
PCB Through Hole 90 °
Accuracy:
±2 %
Device Pressure Type:
Differential
Operating Pressure Range:
-5 to 5 inH2O
Media:
Air,Gas
Output Voltage:
I²C
Response Time:
0.46 mS
Typical Operating Supply Voltage:
5 V
Operating Temperature:
-20 to 105 °C
Dimension:
24.81 x 14.02 mm
Life Cycle:
Discontinued & Replaced
This product is discontinued, but still in stock
IN STOCK: 50
Ships today, if you order in
Price (USD)
Qty
Unit Price
1
$25.61
5
$25.09
10
$24.59
25
$24.10
50
$23.62
100
$23.14
250
+
$22.68
Datasheet
