BZE6-2RN18 by honeywell

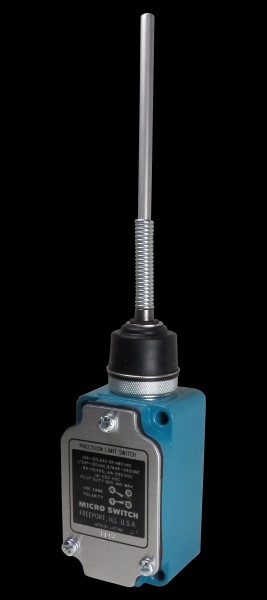

Image is representational - see manufacturer specifications
Honeywell Authorized Distributor

BZE6-2RN18

Limit Switch - Wobble Coil Spring - SPDT-1NO - SPDT-NC - 15 A - 600 V - 2 N - E6 Series. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Box Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The BZE6-2RN18 is a MICRO SWITCH™ medium-duty Limit Switch with coil spring wobble stick actuator modification, standard internal basic switch construction, standard (single-break) contact, seal boot plunger type, snap action operation and screw terminal. Lead washer is used to seal the mounting holes on side mount switch. Side mount switch is installed with #6 screws. Removal of the bottom enclosure exposes the terminals for easy wiring.

Product Highlights:

  • Side or flange mount
  • Momentary or maintained contact
  • Grounding screw
  • High capacity (22 amp) available
  • Temperature range -32 C to +71 C [ -25 F to +160 F]
  • Zinc Die-Cast housing NEMA 1
  • UL Recognized, file #E12252
  • CSA Certified, file #LR41372
  • NEMA 1, 3, 4 /IP66
  • Pre-leaded or connector termination options

Potential Applications:

  • Packaging equipment
  • Special machinery
  • Textile machinery
  • Conveyors
  • Construction machinery and equipment
  • Printing trades machinery
  • Overhead cranes and hoists

Search Keywords: BZE62RN18

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
BZE6-2RN18
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509055
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
10
Package Type:
Box
Type:
Enclosed
Actuator Style:
Coil Spring
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Operating Force:
1.95 N
Maximum Current Rating:
0.5@125VDC A
Terminal Type:
Conduit
NEMA Standard as Enclosure Rating:
1, 3, 4
Body Orientation:
Straight

IN STOCK: 110

Ships today, if you order in

Factory Lead-Time 5 Weeks

Price (USD)

Qty
Unit Price
1
$140.78
5
$136.65
10
$135.30
20
$134.62
50
$133.94
100 +
$132.28
