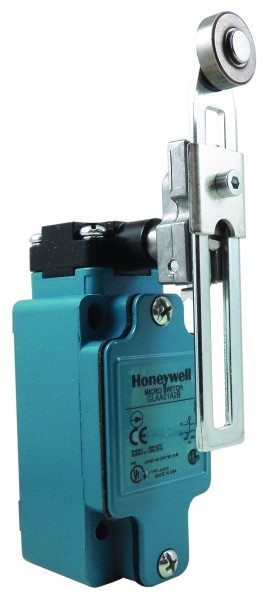

GLAA20A2A by honeywell

GLAA20A2A

Honeywell

MICRO SWITCH™ Global Limit Switches: GLA Series, EN50041 Mounting Standard, Epoxy-Coated Zinc Housing, Non Plug-In Body Style, Side Rotary, Adjustable Roller Lever, Ø 19 mm x 6 mm [0.75 in x 0.24 in] Nylon Roller, 2NC 2NO Double Pole Double Throw (DPDT) Snap Action, AC 15, A600; DC 13, Q300, 0.5 in - 14 NPT Conduit, Operating Temperature: -40 °C to 85 °C [-40 °F to 185 °F], IP 67; NEMA/UL 1, 4, 12, and 13, Agency Approvals: CE, CCC, CSA, UL ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The HONEYWELL part GLAA20A2A is a MICRO SWITCH„¢ Global Limit Switch from the GLA Series. It features an EN50041 Mounting Standard and an epoxy-coated zinc housing. The switch has a non plug-in body style with a side rotary action and an adjustable roller lever measuring 19 mm x 6 mm [0.75 in x 0.24 in] with a nylon roller. This switch has a double pole double throw (DPDT) snap action configuration with 2 normally closed (NC) and 2 normally open (NO) contacts. It is rated for AC 15, A600; DC 13, Q300. The switch has a 0.5 in - 14 NPT conduit for easy installation and has an operating temperature range of -40 °C to 85 °C [-40 °F to 185 °F]. With an IP rating of 67, this limit switch is dust-tight and can withstand temporary immersion in water. It is also compliant with NEMA/UL standards 1, 4, 12, and 13. The switch has additional agency approvals including CE, CCC, CSA, and UL. Overall, the HONEYWELL GLAA20A2A is a reliable and versatile limit switch suitable for a wide range of industrial applications.

Product Highlights:

  • Designed to IEC standard for world-wide applications
  • UL, CSA, and CE
  • International conduit sizes
  • Direct PLC interface compatible (two circuit)
  • Modular construction reduces maintenance parts costs
  • Designed for ease of installation
  • Variety of basic switch versions
  • Wide choice of actuators

Search Keywords: GLAA20A2A

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
GLAA20A2A
RoHS:
Yes
HTS:
85365090
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Global
Actuator Style:
Adjustable Roller Lever
Pole Throw Configuration:
DPDT
Switch Configuration:
N.O./N.C.
Operating Force:
N/A
Maximum Current Rating:
6@120VAC A
Terminal Type:
Conduit
NEMA Standard as Enclosure Rating:
1, 4, 12, 13
Body Orientation:
Right Angle

IN STOCK: 2

Ships today, if you order in

On Order: 25   can ship 2/2/26

Factory Lead-Time 16 Weeks
