LSB1A by honeywell

LSB1A

Honeywell

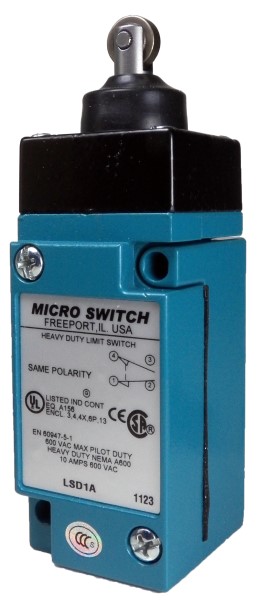

MICRO SWITCH™ Heavy-Duty Limit Switches: LS Series HDLS Limit Switch, Top Rotary Momentary (Lever Not Included), Plug-in, 1NC 1NO Single Pole Double Throw (SPDT), Snap Action, Double Break, 0.5 in - 14NPT Conduit ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The HONEYWELL part LSB1A is a MICRO SWITCH„¢ Heavy-Duty Limit Switch from the LS Series HDLS collection. This specific model features a top rotary momentary design (lever not included) and is a plug-in style switch. It is equipped with a single pole double throw (SPDT) configuration, offering one normally closed (NC) and one normally open (NO) contact. With a snap action mechanism and double break functionality, this limit switch ensures precise and reliable performance. It is designed to be used with a 0.5 in - 14NPT conduit for easy installation and compatibility with various applications.

Product Highlights:

  • Wide variety of operating heads
  • Field adjustable operating modes, for reduced inventory
  • Convenience of on-the-spot adjustment instructions
  • Complete choice of circuitry and electrical rating options
  • Plug-in and non plug-in versions have identical operating characteristics and are dimensionally interchangeable
  • Manifold (rear-wire) version
  • Explosion-proof versions
  • Low temperature versions to -40 C (-40 F)
  • Captive head and body screws
  • Designed to withstand seismic shock
  • Stainless steel (NEMA 4X) versions
  • Pre-leaded cable or pre-wired connector types
  • Epoxy filled wash down (NEMA 6P) types
  • Completely fluorocarbon (FC) sealed versions

Potential Applications:

  • Machine Tools
  • Material Handling
  • Packaging
  • Presses
  • Pulp and Paper
  • Welding
  • PLC Interface

Search Keywords: LSB1A

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
LSB1A
RoHS:
Yes
HTS:
85365009
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Heavy Duty
Actuator Style:
Top Rotary
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Operating Force:
N/A
Dimension:
41.1 x 44.4 x 127.6 mm
Maximum Current Rating:
10@24VDC A
Terminal Type:
Conduit
NEMA Standard as Enclosure Rating:
1, 3, 4, 4X, 6, 6P, 12, 13
Body Orientation:
Straight

IN STOCK: 18

Ships today, if you order in

Factory Lead-Time 5 Weeks

Price (CAD)

Qty
Unit Price
1
$482.559
3
$474.581
5
$462.560
10 +
$442.408
