HDRA-E68LGKPC by htk honda

HDRA-E68LGKPC

HTK HONDA

Hdra-E68Lgkpc/Honda Connector |Honda HDRA-E68LGKPC ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

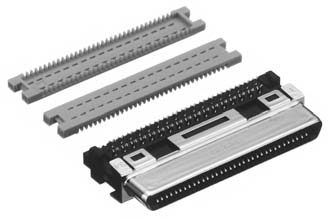

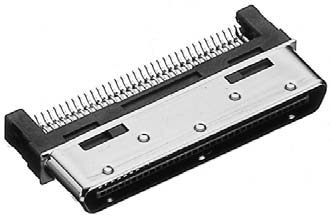

The HDRA-E68LGKPC is a right-angle through-hole type female connector designed for PCB applications, featuring 136 total contacts arranged in a 68×2 configuration with a 0.8 mm pitch. This connector complies with ANSI/SFF8441 standards and is available in two contact through-hole lengths: 2.08 mm for 1.6 mm thick PCBs and 3.4 mm for 2.4 mm thick PCBs. The connector includes earth lock pins with a board lock mechanism, shell connection reinforcement, protection covers for contacts and bends, and is supplied with four lock screws for secure panel mounting at 1.12 mm panel thickness. The connector accommodates mating with HDRA series IDC type male cable connectors or straddle SMT type male connectors on PCBs. This design is ideal for high-density interconnect applications in telecommunications, data center, and industrial equipment requiring reliable, compact signal transmission.

Search Keywords: HDRAE68LGKPC

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
HTK HONDA
Part No:
HDRA-E68LGKPC
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536698000
COO:
JP
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1

IN STOCK: 114

Ships today, if you order in

Minimum Order Quantity: 10

Factory Lead-Time 28 Weeks

Price (USD)

Qty
Unit Price
10
$18.94
55
$17.50
100 +
$12.35
Log in for special pricing Click for Quote Price Match Request
