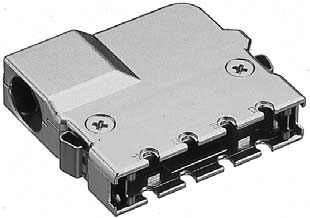

Image is representational - see manufacturer specifications
HTK HONDA Authorized Distributor

PCR-E36FS+

Conn High Density F 36 POS 1.27mm Solder ST Cable Mount 36 Terminal 1 Port ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The PCR-E36FS+ is a cable-side soldering type female connector designed for high-density board-to-cable interconnections in electronic equipment. It features 36 contacts at 1.27 mm pitch with bellows-contact design and supports soldering termination for AWG#20 maximum wire gauge. The connector is EMI-filtered to meet FCC and other standards, and includes an insulator, shell, spacer, and contact components for robust mechanical and electrical performance. With dimensions of 31.80 mm (A) × 23.51 mm (B) × 21.59 mm (C) × 26.41 mm (D), it is well-suited for office automation equipment, instrumentation, communications systems, and factory automation applications where parallel or horizontal stacking configurations are required.

Search Keywords: PCRE36FS

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
HTK HONDA
Part No:
PCR-E36FS+
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
JP
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1080
Type:
High Density
Body Orientation:
Straight
Mounting:
Cable Mount
Gender:
F
Termination Method:
Solder
Pitch:
1.27 mm
Number of Contacts:
36
Maximum Voltage Rating:
250 VAC
Maximum Current Rating:
1 A
Operating Temperature:
-55 to 105 °C

IN STOCK: 0

MOQ for out of Stock Qty: 270

Factory Lead-Time 26 Weeks

Price (USD)

Qty
Unit Price
270
$23.26
540
$12.28
810
$8.45
1,080 +
$8.28
