HBL2620RT by hubbell

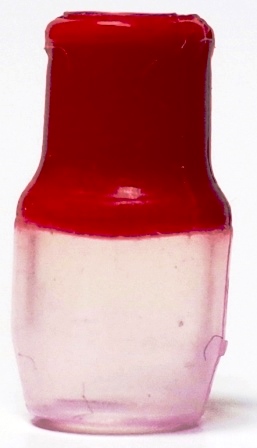

Image is representational - see mfr. specs

HBL2620RT

Hubbell

CAT#HBL2620, RING T MOD ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The HBL2620RT is a single Twist-Lock receptacle (L6-30R configuration) designed for 30A, 250V AC applications with ring terminal and side-wired capabilities. It features a 2-pole, 3-wire configuration and incorporates an all-brass mounting system that provides a low-resistance ground path and enhanced safety. The receptacle is constructed with a reinforced thermoplastic polyester (RTP) base offering heat and flame resistance with dimensional stability, combined with a high-impact, abuse-resistant nylon face. Contact springs, clamps, ground contacts, and end plates are fabricated from 0.040" brass, with terminal screws rated 10-32 brass for secure connections. This receptacle is UL recognized to Standard 4981 and CSA certified to Standard C22.2 No. 42, making it suitable for industrial power distribution, temporary power systems, and equipment requiring secure twist-lock connections with ring terminal termination.

Search Keywords: HBL2620RT

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Hubbell
Part No:
HBL2620RT
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694030
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Twist-Lock
Body Orientation:
Straight
Mounting:
Panel Mount
Gender:
RCP
Number of Contacts:
2Power/1Ground
Termination Method:
Screw
Maximum Voltage Rating:
250 VAC
Maximum Current Rating:
30 A
Operating Temperature:
-40 to 75 °C

IN STOCK: 0

On Order: 50   can ship 6/19/26
On Order: 50   can ship 7/10/26

Factory Lead-Time 6 Weeks

Price (USD)

Qty
Unit Price
1
$106.76
5
$81.85
10
$69.63
25
$67.42
50
$67.09
100
$66.75
250 +
$66.42
