AB8Q-M1-G by idec corporation

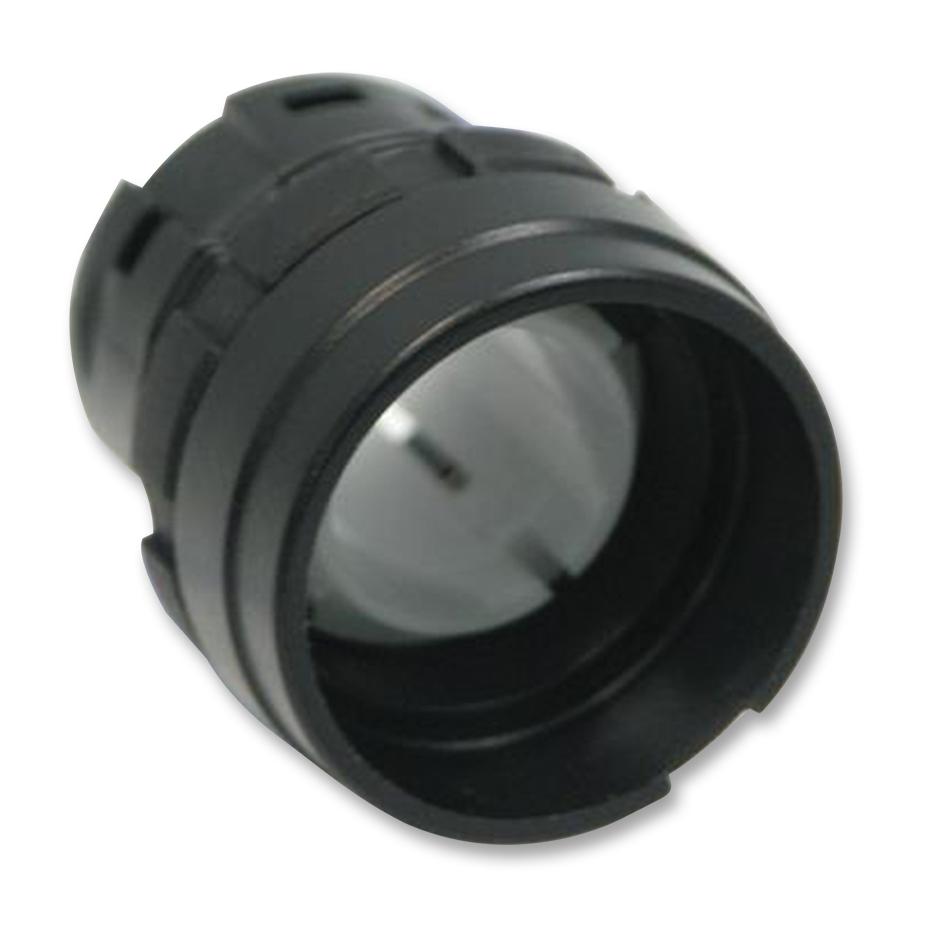

Image is representational - see mfr. specs

AB8Q-M1-G

IDEC Corporation

Switch Push Button N.O./N.C. SPDT Square Button 1A 250VAC 250VDC Momentary Contact Solder Tab Panel Mount ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The AB8Q-M1-G is an illuminated pushbutton switch from IDEC's miniature A8 Series, featuring a compact 8mm round design with SPDT (Single Pole Double Throw) contact configuration and integrated LED lamp. The switch operates at a maximum voltage of 250V AC/DC with a thermal current rating of 3A, gold-clad silver contacts for reliable low-level switching, and solder tab terminals for secure installation. It delivers an LED lamp life of approximately 50,000 hours (reduced to half intensity), with contact resistance of 50 mO maximum and insulation resistance of 100 MO minimum (500V DC megger). The device is rated for operating temperatures from -25°C to +55°C with 45–85% relative humidity, provides IP40 dustproof protection, and achieves 100,000 minimum electrical operations and 100,000 mechanical operations at 1200 operations/hour in maintained mode. This illuminated pushbutton is ideal for industrial control panels, machinery interfaces, and operator stations where visual feedback and compact space-saving design are essential.

Search Keywords: AB8QM1G

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
IDEC Corporation
Part No:
AB8Q-M1-G
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509031
COO:
JP
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Mounting:
Panel Mount
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Contact Rating @ Voltage:
1A@120VAC 24 VDC
Actuator Style:
Square Button
Terminal Type:
Solder

IN STOCK: 362

Ships today, if you order in

Minimum Order Quantity: 5

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
5
$12.47
25
$10.36
50
$9.80
100
$9.21
250
$8.57
500
$8.17
1,000 +
$7.82
