ABD111NUR by idec corporation
IDEC Corporation Authorized Distributor

ABD111NUR

Switch Push Button N.O./N.C. DPST Flush Round Button 10A 440VAC 220VDC Momentary Contact Panel Mount Screw ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

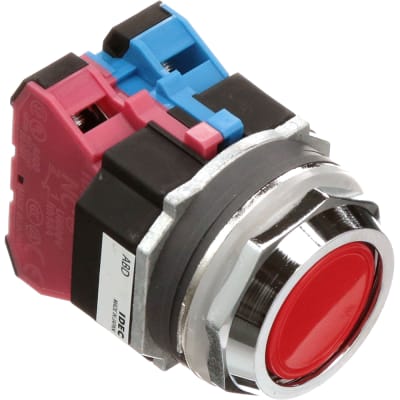

The ABD111NUR is a flush-mounted momentary pushbutton switch from the TWND Series featuring a 1NO-1NC (one normally open, one normally closed) contact configuration. This heavy-duty industrial switch is constructed with rugged components including a chrome-plated zinc locking ring, die-cast zinc mounting thread, and self-cleaning wiping contacts for reliable operation in demanding environments. The switch is rated for AC-12 control of resistive and solid-state loads at 24V (10A), 50V (10A), 110V (10A), 220V (6A), and 440V (2A), as well as DC-12 control at 24V (10A), 50V (7A), 110V (5A), 220V (3A), and 440V (1A). It meets UL Type 4X, 13, and IP65 watertight/oiltight panel ratings, making it suitable for harsh industrial, manufacturing, and process control applications where reliable switching and environmental protection are critical.

Search Keywords: ABD111NUR

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
IDEC Corporation
Part No:
ABD111NUR
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509035
COO:
JP
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Mounting:
Panel Mount13759
Pole Throw Configuration:
DPST13761
Bushing Type:
Threaded13741
Switch Configuration:
N.O./N.C.13768
Contact Rating @ Voltage:
1013752A@110VAC
Actuator Style:
Flush Round Button13737
Illumination:
N/R
Terminal Type:
Screw13770
Body Orientation:
Straight13740
Dimension:
41.4mm x 39mm x 54.413763mm

IN STOCK: 1

Ships today, if you order in

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
1
$30.32
5
$28.41
10
$27.57
25
$26.48
50
$25.66
100
$24.82
250 +
$23.73
