AL6Q-M14-W by idec corporation

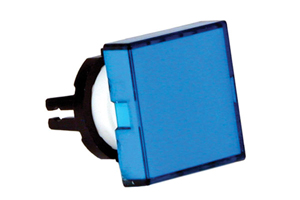

Image is representational - see mfr. specs

AL6Q-M14-W

IDEC Corporation

Switch Push Button N.O./N.C. SPDT Square Button 1A 250VAC 250VDC Momentary Contact Quick Connect/Solder Panel Mount ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The AL6Q-M14-W is a square momentary illuminated pushbutton from IDEC's 16mm A6 Series, designed for compact control panel applications requiring visual feedback. It features a single-pole double-throw (SPDT) contact configuration with gold-clad silver contacts rated for 250V AC/DC maximum voltage and 3A thermal current, supporting minimum applicable loads of 5V AC/DC at 1mA. The unit includes LED illumination with a warm white lens (W color code) and operates across a temperature range of -25°C to +55°C, with IP65 oiltight protection to resist dust and moisture ingress. The pushbutton is mounted via a 16mm (5/8") hole with .110" solder or quick-connect terminals, making it suitable for industrial control systems, machinery interfaces, and signaling applications where space efficiency and reliable low-level switching are essential.

Search Keywords: AL6QM14W

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
IDEC Corporation
Part No:
AL6Q-M14-W
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509031
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Mounting:
Panel Mount
Pole Throw Configuration:
SPDT
Bushing Type:
Threaded
Switch Configuration:
N.O./N.C.
Contact Rating @ Voltage:
1A@120VAC 24 VDC
Actuator Style:
Square Button
Illumination:
White,LED/Lens
Terminal Type:
Quick Connect/Solder
Body Orientation:
Straight
Dimension:
N/A
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 48

Can Ship immediately

Minimum Order Quantity: 5

Price (USD)

Qty
Unit Price
5
$21.68
25
$17.06
50
$16.69
100
$16.15
250
$16.08
500
$16.00
1,000 +
$15.91
Log in for special pricing Click for Quote Price Match Request
