HS9Z-A61 by idec corporation

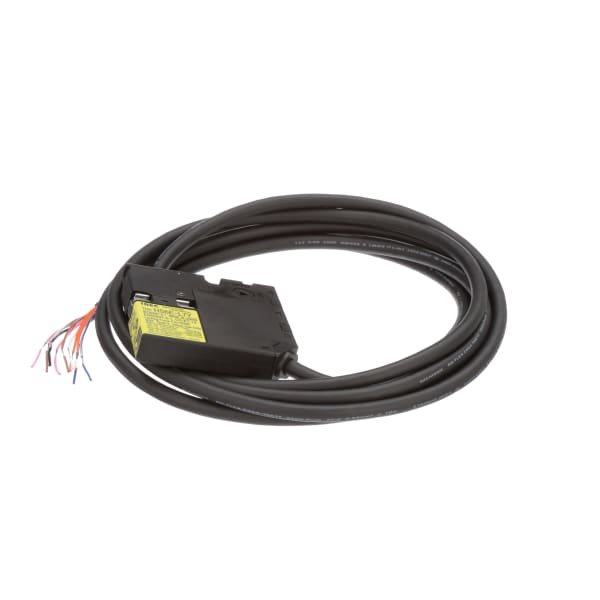

Image is representational - see mfr. specs

HS9Z-A61

IDEC Corporation

Switch Access Straight Actuator Door Interlock Switch ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The HS9Z-A61 is a straight actuator key designed for use with IDEC HS6E solenoid locking safety interlock switches. This actuator provides a maximum retention force of 500N and is engineered for direct insertion into the interlock switch slot, enabling four-directional actuator insertion capability. The HS9Z-A61 operates in conjunction with the HS6E subminiature interlock switch, which features a compact 75 × 15 × 75 mm body and operates at 24V DC with 110 mA total power consumption (solenoid: 100 mA, LED: 10 mA). The actuator is supplied with an actuator stop for proper positioning during installation and is compatible with both spring lock and solenoid lock configurations. Common applications include machinery safety interlocks, protective door locking systems, and industrial equipment access control where high retention force and reliable mechanical locking are required.

Search Keywords: HS9ZA61

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
IDEC Corporation
Part No:
HS9Z-A61
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509065
COO:
JP
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Straight Actuator
Switch Type:
Door Interlock Switch
Color:
N/A

IN STOCK: 163

Can Ship immediately

Minimum Order Quantity: 5

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
5
$5.35
25
$5.10
50
$5.00
100
$4.89
250
$4.76
500
$4.66
1,000 +
$4.55
Log in for special pricing Click for Quote Price Match Request
