121583-0001 by itt cannon

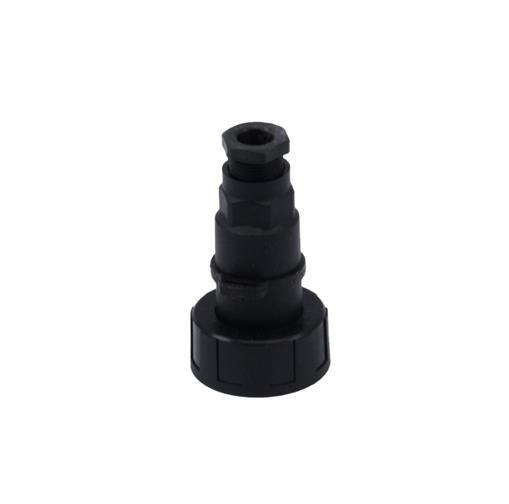

Image is representational - see mfr. specs

121583-0001

ITT CANNON

Circular DIN Connector - 4 Contact - Female - Cable Mount - Crimp Terminal - Plug ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

121583-0001 is an APD series 4-way plug connector with socket gender contacts, designed for demanding transportation applications. It features an operating voltage of 48 VDC, contact resistance of 5 mO max, and voltage proof rating of 1000 VAC for 60 seconds. The connector offers IP 67 + IP 69K sealing protection and operates over a temperature range of -40°C to 140°C with humidity tolerance up to 95% r.h. Constructed with PBT GF housing material and HNBR sealing material, it provides excellent vibration resistance rated at 300 m/s² sine and durability of 50 mating cycles. This connector is ideal for automotive and transportation systems requiring reliable electrical connections in harsh environmental conditions.

Search Keywords: 1215830001

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ITT CANNON
Part No:
121583-0001
Alias/AKA:
APD-2BS-K2
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
PL
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Body Orientation:
Straight

IN STOCK: 2,817

Ships today, if you order in

Minimum Order Quantity: 5

Factory Lead-Time 6 Weeks

Price (USD)

Qty
Unit Price
1
$11.840
5
$10.764
25
$7.601
50
$7.179
100
$7.025
300
$6.798
500
$6.767
1,000 +
$6.726
Suppliers Standard Package
