323-9510-004 by itt cannon
ITT CANNON Authorized Distributor

323-9510-004

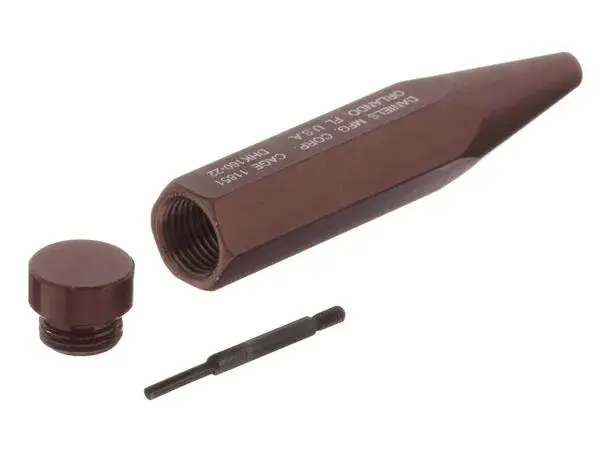

Insertion Tools For Standard Contact ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 323-9510-004 is a VEAM CIR Series connector insert assembly designed for high-reliability electrical interconnection in industrial applications. This product supports multiple contact sizes (ranging from size 20 to 4/0 AWG) with corresponding current ratings from 7.5 A up to 225 A, accommodating wire sizes from 2 mm² to 95 mm². The connector features various insert arrangements with contact quantities ranging from 1 to 159 contacts, enabling flexible configuration for diverse wiring requirements. Key technical specifications include crimp bucket inner diameters ranging from 2.2 mm to 16.5 mm and wire diameters from 0.55 mm to 15.0 mm, with service ratings designated as A, D, E, I, or HV (6 kVAC). The product is engineered for use in energy infrastructure, aerospace, and transportation applications where reliable power distribution and signal transmission are critical.

Search Keywords: 3239510004

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ITT CANNON
Part No:
323-9510-004
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8205595560
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1

IN STOCK: 13

Can Ship immediately

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
1
$558.79
5
$557.38
7
$555.99
13
$316.99
19
$228.94
25 +
$224.35
Log in for special pricing

Tools/3D Models

Product Guides
