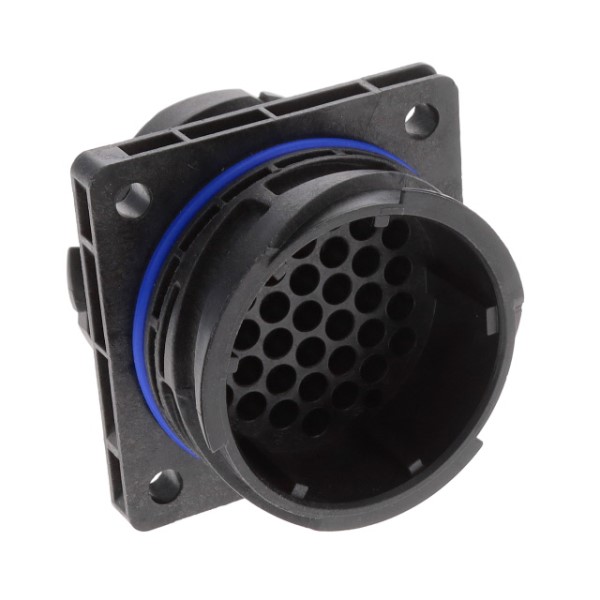

Image is representational - see manufacturer specifications
DESCRIPTION
Flange Receptacle, 37-way Black with O-ring
Search Keywords: APD1AP37R
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ITT CANNON
Part No:
APD-1AP37R
Alias/AKA:
249-8619-017
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538908180
COO:
DE
ECCN:
EAR99
Supplier Standard Pack:
100
Coding (Mechanical Keying And Visual Color Coding):
Code 1 - black (RAL 9005)
Durability Rating:
20 Mating Cycles
Fluid Compatibility:
Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)
Mounting Method:
Rear Mount
Coupling Nut Material:
PA 6 GF
Series:
APD 37-way
Salt Spray:
96 h, 35 °C (ISO 15170-2, Sec. 6.2)
Sealing:
IP 67 (DIN EN 60529)
Insulator Resistance:
10 MΩ min.
Coupling Torque:
4 Nm max
Gender:
Pin
Humidity Range:
up to 95 %
Connector Type:
Flange Receptacle
Static Load:
250 N axial, 150 N lat. (ISO 15170-2, Sec. 4.5)
Operating Voltage:
48 VDC
Contact Resistance:
5 mΩ max
Voltage Proof:
1000 VAC, 60 seconds
Dynamic Impact:
Free fall with cable (EN 61984 Sec. A9, height 1m)
Operating Current:
see derating curve (catalog)
Housing Material:
PA 66 GF
Sealing Material:
FKM (alternative FVMQ)
Temperature Range:
-40 °C up to 125 °C (ISO 15170-2, Sec. 6.4)
Vibration Resistance:
Sine, 300 m/s², 3 x 100h, RT and 120°C (ISO 15170-2)
Industrial Climate:
SO2, 0,67 %
IN STOCK: 236
Can Ship immediately
Minimum Order Quantity: 100
Factory Lead-Time 12 Weeks
Datasheet
