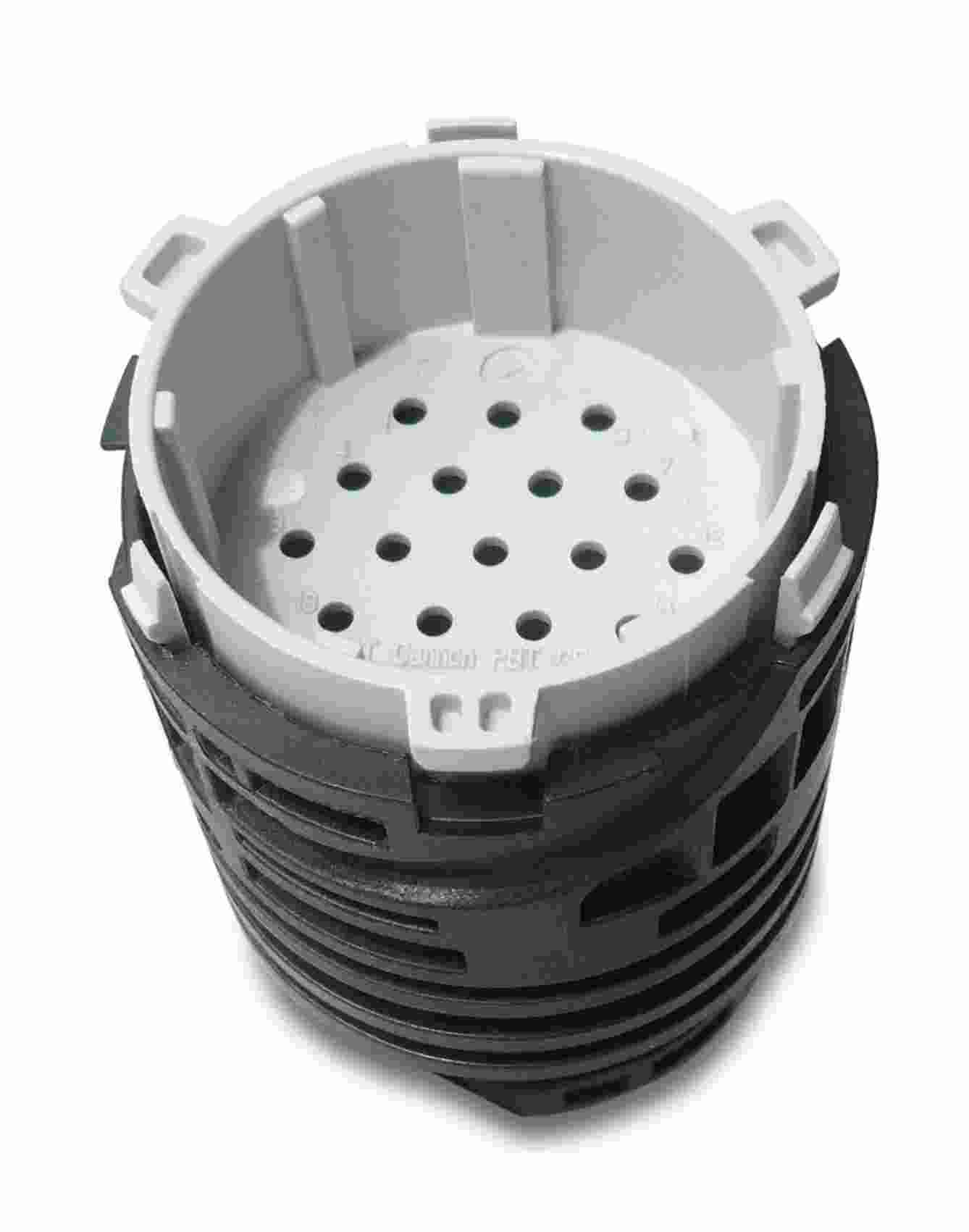

APD-1BP19S

Products found: 0

Supplier:

ITT CANNON

Part No:

APD-1BP19S

RoHS:

Yes

HTS:

8536694020

COO:

DE

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

40

Gender:

Sealing Material:

FKM

Industrial Climate:

SO2, 0,67 %

Coding (Mechanical Keying And Visual Color Coding):

Code 1 - black (RAL 9005)

Coupling Torque:

3.5 Nm max

Voltage Proof:

1000 VAC, 60 seconds

Salt Spray:

96 h, 35 °C (ISO 15170-2, Sec. 6.2)

Housing Material:

PBT GF

Coupling Nut Material:

PA 46 GF

Static Load:

250 N axial, 150 N lat. (ISO 15170-2, Sec. 4.5)

Humidity Range:

up to 95 %

Dynamic Impact:

Free fall with cable (EN 61984 Sec. A9, height 1m)

Sealing:

IP 67 (DIN EN 60529)

Insulator Resistance:

10 MΩ min.

Series:

APD 19-way

Operating Current:

see derating curve (catalog)

Temperature Range:

-40 °C up to 125 °C (ISO 15170-2, Sec. 6.4)

Durability Rating:

50 Mating Cycles

Operating Voltage:

48 VDC

Connector Type:

Plug

Fluid Compatibility:

Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)

Vibration Resistance:

Sine, 300 m/s², 3 x 100h, RT and 120°C (ISO 15170-2)

Contact Resistance:

5 mΩ max
