APD-1CPH8-2-12 by itt cannon

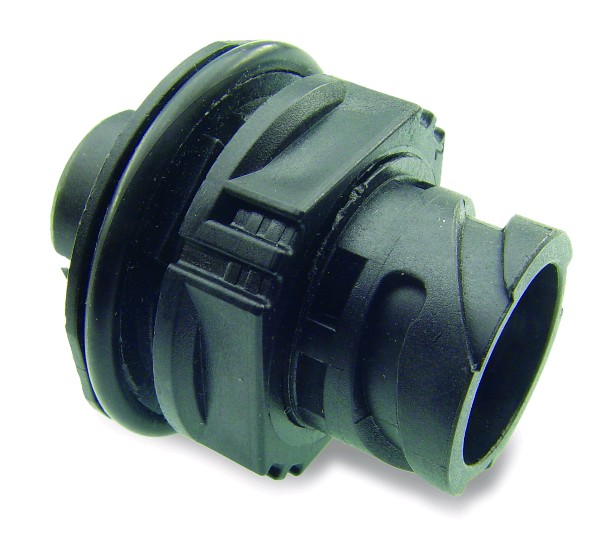

Image is representational - see manufacturer specifications
ITT CANNON Authorized Distributor

APD-1CPH8-2-12

grey (RAL 7036) High Power Jam Nut Receptacle, 2-way ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 121583-0085 is a high-power jam nut receptacle connector with 2-way configuration, part of the Cannon APD series compliant with ISO 15170 standards. This connector features a PG 16 thread with dimensions of 38 mm length and 23.5 mm diameter, incorporating pin crimp contacts and a jam nut design suitable for wall thicknesses of 1.0 to 4.0 mm. The housing is constructed from PBT GF (polybutyrene terephthalate glass-filled), with HNBR sealing parts and copper alloy contacts plated with silver, ensuring excellent corrosion resistance and electrical performance. The connector is rated for IP 67 and IP 69K sealing protection, operates reliably in temperatures up to 120°C, and demonstrates vibration resistance of 200 m/s² across 3 axes for 100 hours. This connector is ideal for high-power applications in military, aerospace, industrial instrumentation, and oil & gas environments where reliable, sealed electrical connections are critical.

Search Keywords: APD1CPH8212

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ITT CANNON
Part No:
APD-1CPH8-2-12
Alias/AKA:
121583-0085
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
DE
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
100

IN STOCK: 541

Ships today, if you order in

Minimum Order Quantity: 5

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
5
$10.27
25
$9.93
50
$9.79
100
$9.64
300
$9.41
500
$9.31
1,000 +
$7.35
