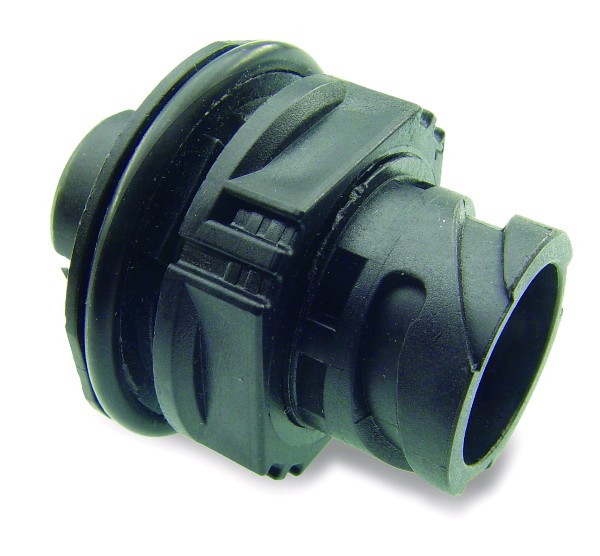

APD-2CP-K2

Products found: 0

Supplier:

ITT CANNON

Part No:

APD-2CP-K2

RoHS:

Yes

HTS:

8538906000

COO:

DE

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

100

Contact Resistance:

5 mΩ max

Durability Rating:

50 Mating Cycles

Static Load, Mated Connector:

250 N axial, 150 N lat. (ISO 15170-2, Sec. 4.5)

Operating Current:

see derating curve (catalog)

Connector Type:

Jam Nut Receptacle

Coupling Torque:

1,2 Nm max

Static Load, Free Connector:

350 N (ISO 15170-2, Sec. 4.6)

Series:

APD 4-way

Temperature Range:

-40 °C up to 140 °C (ISO 15170-2, Sec. 6.4), 30g

Housing Material:

PBT GF

Salt Spray:

96 h, 35 °C (ISO 15170-2, Sec. 6.2)

Industrial Climate:

SO2, 0,67 %

Sealing:

IP 67 (DIN EN 60529)

Coding (Mechanical Keying And Visual Color Coding):

Code 2 - grey (RAL 7036)

Coupling Nut Material:

PA 66 GF

Operating Voltage:

48 VDC

Vibration Resistance:

Sine, 300 m/s², 3 x 100h, RT and 120°C (ISO 15170-2)

Fluid Compatibility:

Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)

Gender:

Voltage Proof:

1000 VAC, 60 seconds

Insulator Resistance:

10 MΩ min.

Humidity Range:

up to 95 %

Sealing Material:

HNBR (alternative FKM)
