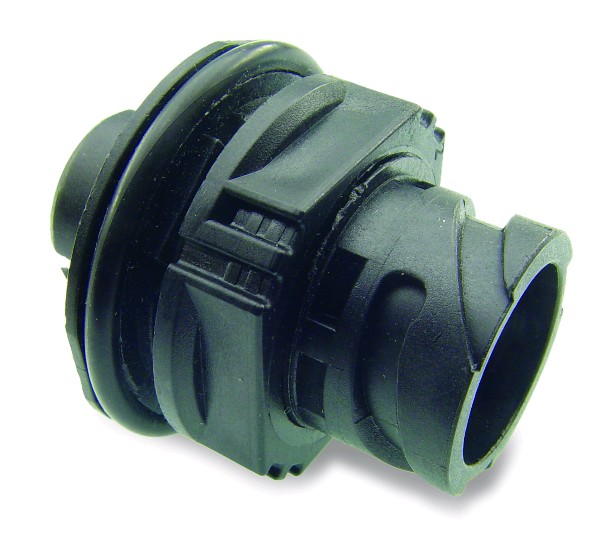

APD-3CP-K2

Products found: 0

Supplier:

ITT CANNON

Part No:

APD-3CP-K2

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8538906000

COO:

DE

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

100

Gender:

Static Load, Free Connector:

350 N (ISO 15170-2, Sec. 4.6)

Industrial Climate:

SO2, 0,67 %

Temperature Range:

-40 °C up to 140 °C (ISO 15170-2, Sec. 6.4), 30g

Coupling Torque:

1,2 Nm max

Voltage Proof:

1000 VAC, 60 seconds

Insulator Resistance:

10 MΩ min.

Vibration Resistance:

Sine, 300 m/s², 3 x 100h, RT and 120°C (ISO 15170-2)

Sealing:

IP 67 (DIN EN 60529)

Humidity Range:

up to 95 %

Salt Spray:

96 h, 35 °C (ISO 15170-2, Sec. 6.2)

Static Load, Mated Connector:

250 N axial, 150 N lat. (ISO 15170-2, Sec. 4.5)

Durability Rating:

50 Mating Cycles

Operating Voltage:

48 VDC

Coupling Nut Material:

PA 66 GF

Contact Resistance:

5 mΩ max

Operating Current:

see derating curve (catalog)

Housing Material:

PBT GF

Connector Type:

Jam Nut Receptacle

Series:

APD 4-way

Fluid Compatibility:

Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)

Coding (Mechanical Keying And Visual Color Coding):

Code 3 - green (RAL 6029)

Sealing Material:

HNBR (alternative FKM)
