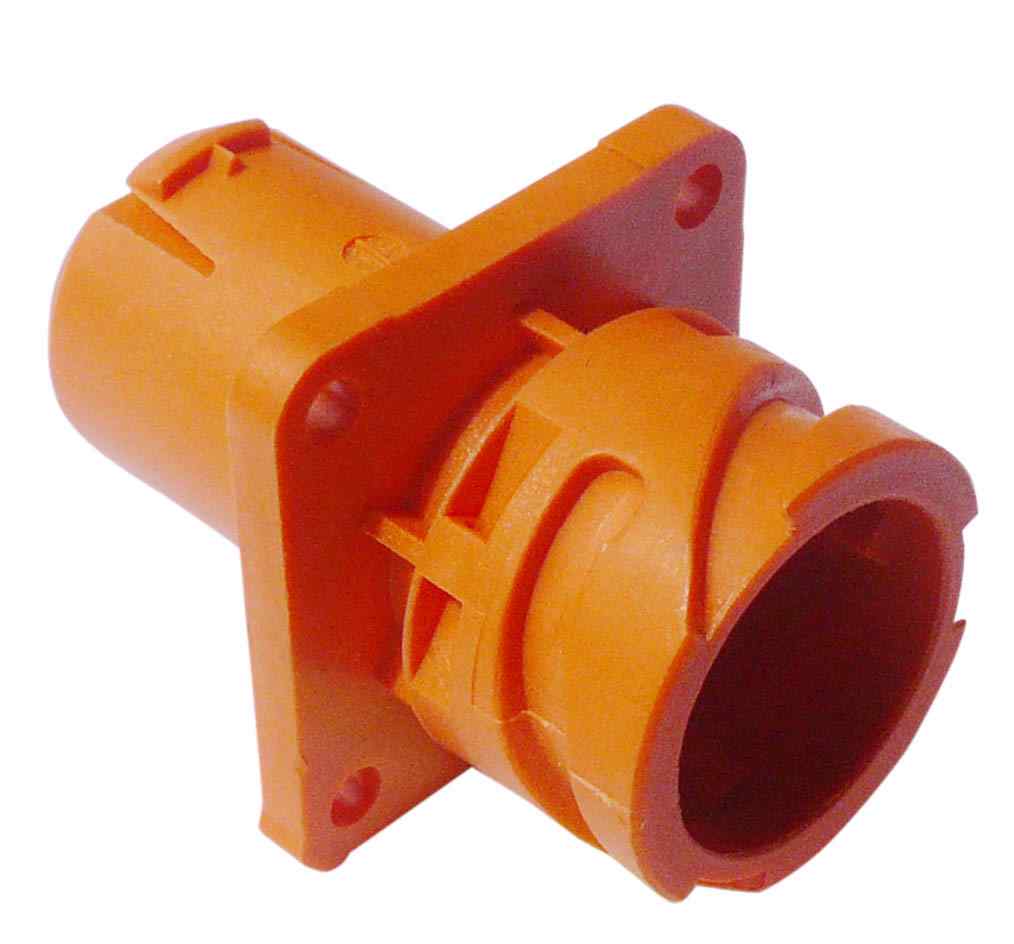

APD-59AP-HV

Flange Receptacle, 4-way High Voltage ...

View Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 121583-0215 is a high-voltage 4-way flange receptacle connector designated APD-59AP-HV, engineered to meet ISO 15170 standards for demanding high-power interconnect applications. The connector features a flange-mounted design with mechanical keying and visual color coding (orange, RAL 2003) for reliable mating identification. It accommodates pin crimp contacts and is constructed with PBT GF housing, HNBR sealing parts, PA 66 GF coupling nut, and copper alloy contacts with tin or gold plating for superior conductivity and corrosion resistance. The receptacle is rated for vibration resistance of 200 m/s² (sine, 3 × 100 hours at room temperature and 120°C) and demonstrates compatibility with brake fluid, ATF, and fuel per ISO 15170-2 specifications. This connector is ideal for automotive, industrial instrumentation, and aerospace applications requiring robust high-voltage power distribution with environmental sealing and mechanical durability.

Search Keywords: APD59APHV

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ITT CANNON
Part No:
APD-59AP-HV
Alias/AKA:
121583-0215
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
PL
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Housing Material:
PBT GF
Voltage Proof:
3500 VAC, 60 seconds
Sealing:
IP 67 (DIN EN 60529)
Vibration Resistance:
Sine, 300 m/s², 3 x 100h, RT and 120°C (ISO 15170-2)
Contact Resistance:
5 mΩ max
Operating Current:
see derating curve (catalog)
Humidity Range:
up to 95 %
Static Load, Mated Connector:
250 N axial, 150 N lat. (ISO 15170-2, Sec. 4.5)
Static Load, Free Connector:
350 N (ISO 15170-2, Sec. 4.6)
Coupling Torque:
1,2 Nm max
Coupling Nut Material:
PA 66 GF
Coding (Mechanical Keying And Visual Color Coding):
Code 5 - orange (RAL 2003)
Operating Voltage:
500 VDC
Series:
APD High Voltage 4-way
Insulator Resistance:
10 MΩ min.
Salt Spray:
96 h, 35 °C (ISO 15170-2, Sec. 6.2)
Temperature Range:
-40 °C up to 140 °C (ISO 15170-2, Sec. 6.4), 30g
Gender:
Pin
Fluid Compatibility:
Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)
Sealing Material:
HNBR (alternative FKM)
Connector Type:
Flange Receptacle
Industrial Climate:
SO2, 0,67 %
Durability Rating:
50 Mating Cycles

IN STOCK: 603

Can Ship immediately

MOQ for In Stock Qty: 100

MOQ for out of Stock Qty: 100

Factory Lead-Time 10 Weeks
