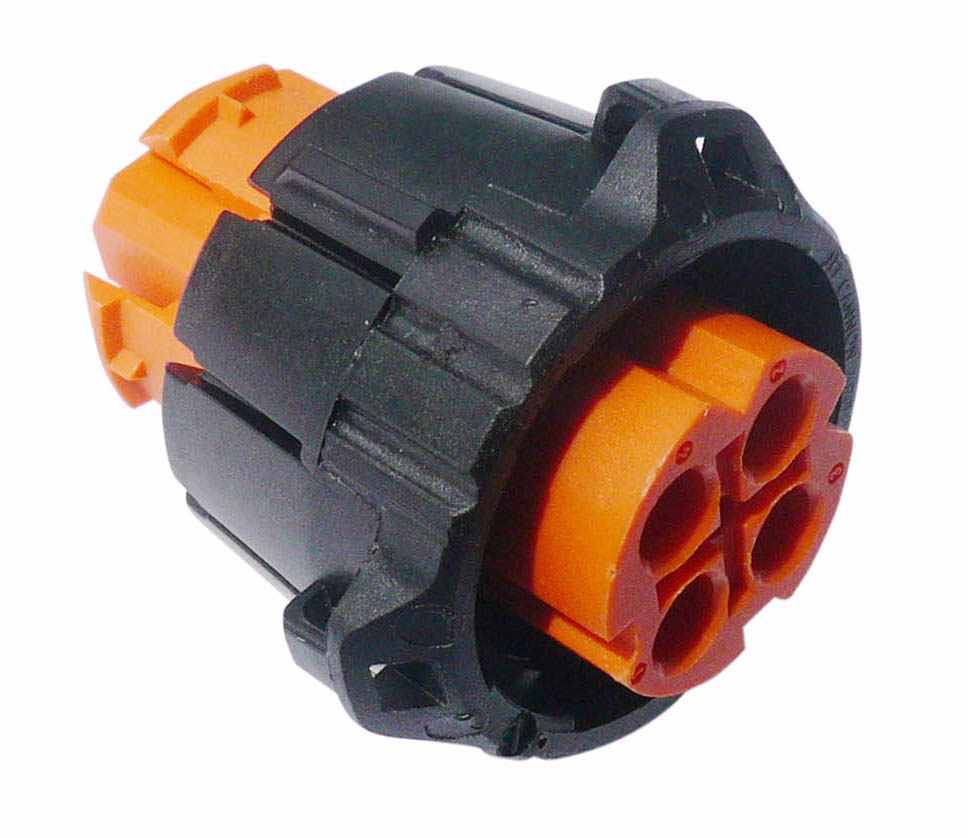

Name: APD-59BS-HV
Brand: Itt Cannon
SKU: 42930500
Price: 5277 USD
Availability: InStock

Products found: 0

Supplier:

ITT CANNON

Part No:

APD-59BS-HV

Alias/AKA:

121583-0213

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8538906000

COO:

PL

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

100

Static Load, Free Connector:

350 N (ISO 15170-2, Sec. 4.6)

Durability Rating:

50 Mating Cycles

Insulator Resistance:

10 MΩ min.

Industrial Climate:

SO2, 0,67 %

Housing Material:

PBT GF

Contact Resistance:

5 mΩ max

Static Load, Mated Connector:

250 N axial, 150 N lat. (ISO 15170-2, Sec. 4.5)

Temperature Range:

-40 °C up to 140 °C (ISO 15170-2, Sec. 6.4), 30g

Connector Type:

Plug

Operating Current:

see derating curve (catalog)

Voltage Proof:

3500 VAC, 60 seconds

Humidity Range:

up to 95 %

Operating Voltage:

500 VDC

Sealing:

IP 67 (DIN EN 60529)

Coupling Torque:

1,2 Nm max

Sealing Material:

HNBR (alternative FKM)

Series:

APD High Voltage 4-way

Fluid Compatibility:

Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)

Salt Spray:

96 h, 35 °C (ISO 15170-2, Sec. 6.2)

Coupling Nut Material:

PA 66 GF

Vibration Resistance:

Sine, 300 m/s², 3 x 100h, RT and 120°C (ISO 15170-2)

Gender:

Socket

Coding (Mechanical Keying And Visual Color Coding):

Code 5 - orange (RAL 2003)
