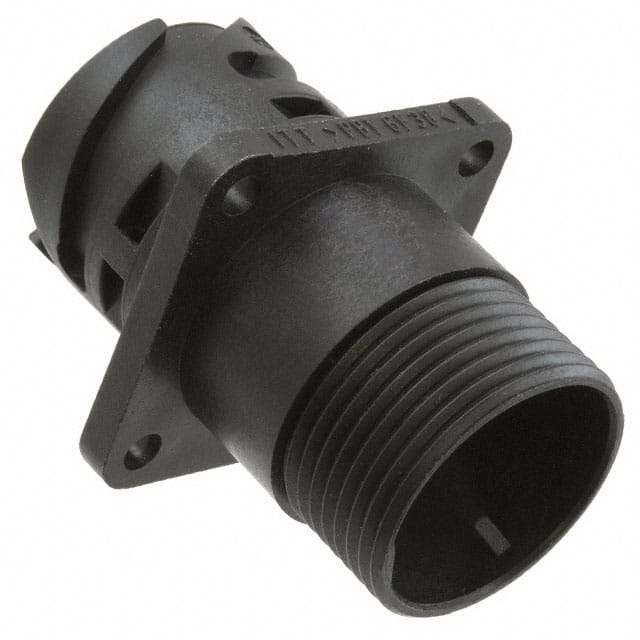

APD-7AP-H

Products found: 0

Supplier:

ITT CANNON

Part No:

APD-7AP-H

RoHS:

Yes

HTS:

8538906000

COO:

DE

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

100

Humidity Range:

up to 95 %

Operating Voltage:

48 VDC

Static Load:

350 N (ISO 15170-2, Sec. 4.6)

Sealing Material:

HNBR (alternative FKM)

Operating Current:

see derating curve (catalog)

Fluid Compatibility:

Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)

Coding (Mechanical Keying And Visual Color Coding):

Code 7 - black (RAL 9005)

Durability Rating:

50 Mating Cycles

Series:

APD High Power 1-way

Temperature Range:

-40 °C up to 125 °C (ISO 15170-2, Sec. 6.4)

Sealing:

IP 67 (DIN EN 60529)

Vibration Resistance:

Sine, 100 m/s², 3 axis, 24h, RT (EN 60512)

Insulator Resistance:

10 MΩ min.

Housing Material:

PBT GF

Coupling Torque:

2 Nm max

Industrial Climate:

SO2, 0,67 %

Gender:

Connector Type:

Flange Receptacle

Salt Spray:

96 h, 35 °C (ISO 15170-2, Sec. 6.2)

Contact Resistance:

0,4 mΩ max

Coupling Nut Material:

PA 66 GF

Voltage Proof:

1000 VAC, 60 seconds
