APD-7SP-H by itt cannon
Image is representational - see mfr. specs

APD-7SP-H

ITT CANNON

High Power Snap-In Receptacle, 1-way, Black ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The ITT CANNON Part 252-0318-000, a top-of-the-line electrical connector designed for superior performance and unrivaled reliability. This innovative product combines advanced technology with premium materials to ensure seamless connectivity in various industrial applications. With its robust construction and durable design, this connector can withstand even the harshest conditions, providing a secure and efficient connection every time. Trust ITT CANNON Part 252-0318-000 to deliver unparalleled quality and meet your most demanding electrical connection needs.

Search Keywords: APD7SPH

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ITT CANNON
Part No:
APD-7SP-H
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
DE
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Sealing:
IP 67 (DIN EN 60529)
Contact Resistance:
0,4 mΩ max
Humidity Range:
up to 95 %
Vibration Resistance:
Sine, 100 m/s², 3 axis, 24h, RT (EN 60512)
Gender:
Pin
Operating Voltage:
48 VDC
Fluid Compatibility:
Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)
Insulator Resistance:
10 MΩ min.
Voltage Proof:
1000 VAC, 60 seconds
Durability Rating:
50 Mating Cycles
Salt Spray:
96 h, 35 °C (ISO 15170-2, Sec. 6.2)
Series:
APD High Power 1-way
Sealing Material:
HNBR (alternative FKM)
Industrial Climate:
SO2, 0,67 %
Operating Current:
see derating curve (catalog)
Housing Material:
PBT GF
Temperature Range:
-40 °C up to 125 °C (ISO 15170-2, Sec. 6.4)
Coupling Nut Material:
PA 66 GF
Connector Type:
Snap-In Receptacle
Coding (Mechanical Keying And Visual Color Coding):
Code 7 - black (RAL 9005)
Coupling Torque:
2 Nm max
Static Load:
350 N (ISO 15170-2, Sec. 4.6)
  Possible Replacement options available.  See Alternatives

IN STOCK: 0

MOQ for out of Stock Qty: 125

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
125
$6.22
250
$5.95
375
$5.73
500 +
$5.39
Log in for special pricing Click for Quote Price Match Request

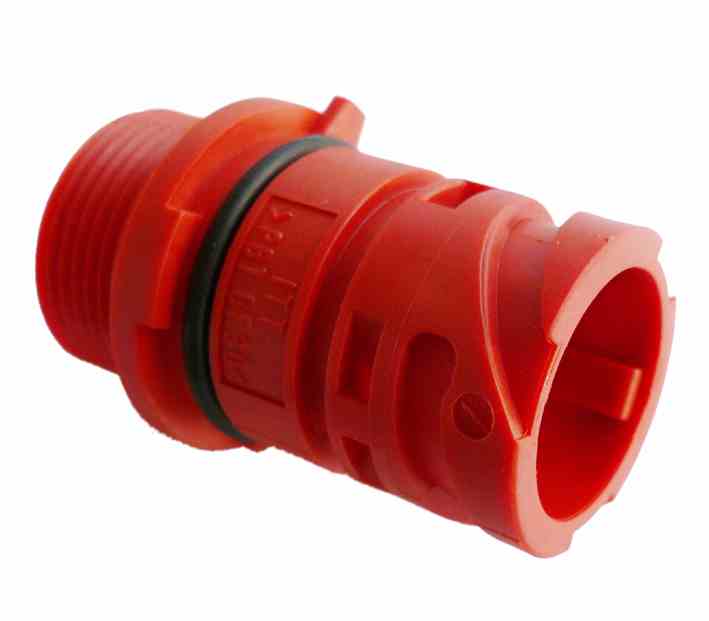

Possible Replacement
249-8619-005
249-8619-005
VIEW PRODUCT
