MDM-25PH003B by itt cannon

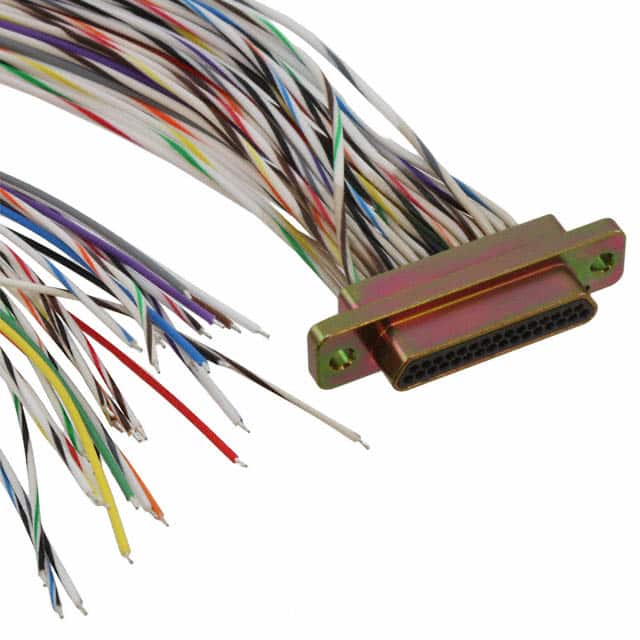

Image is representational - see manufacturer specifications
ITT CANNON Authorized Distributor

MDM-25PH003B

D Microminiature Connector - 25 Contact - Male - 0.05 inch Pitch - Crimp Terminal - Hole .087-.098 - Plug ...

View Datasheet Ask the Datasheet
RoHS Non-Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The ITT CANNON MDM-25PH003B is a high-quality microminiature connector designed for reliable and efficient electrical connections in a compact form factor. This connector features a male plug configuration with 25 contacts, making it ideal for a wide range of applications. With a precise 0.05-inch pitch, this connector ensures precise and secure connections. The crimp terminal design simplifies the installation process, while the hole size of 0.087-0.098 inches guarantees a secure fit. Whether used in industrial, automotive, or aerospace applications, the MDM-25PH003B is a reliable choice for any project where space is limited and connectivity is paramount.

Search Keywords: MDM25PH003B

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ITT CANNON
Part No:
MDM-25PH003B
Alias/AKA:
096516-0072
Unit of Measure:
Per Each
RoHS:
No
HTS:
8544429090
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Micro D-Subminiature3530
Body Orientation:
N/A
Mounting:
Cable Mount3516
Gender:
Pin
Termination Method:
Crimp3529
Shell Size:
33527
Number of Contacts:
25
Contact Plating:
Gold3509
Operating Temperature:
-55 to 125 °C

IN STOCK: 22

Ships today, if you order in

On Order: 130   can ship 8/20/26

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
1
$158.08
5
$146.38
10
$137.82
25
$129.21
50
$123.05
100
$122.75
250 +
$118.78
Log in for special pricing Click for Quote Price Match Request
