MS3102R22-14S by itt cannon
Image is representational - see mfr. specs

MS3102R22-14S

ITT CANNON

The MS3102R22-14S is a MIL-DTL 5015 Series I circular connector, configured as a box mounting receptacle with 19 size 16 socket contacts. ...

Datasheet
RoHS Compliant
Packaging

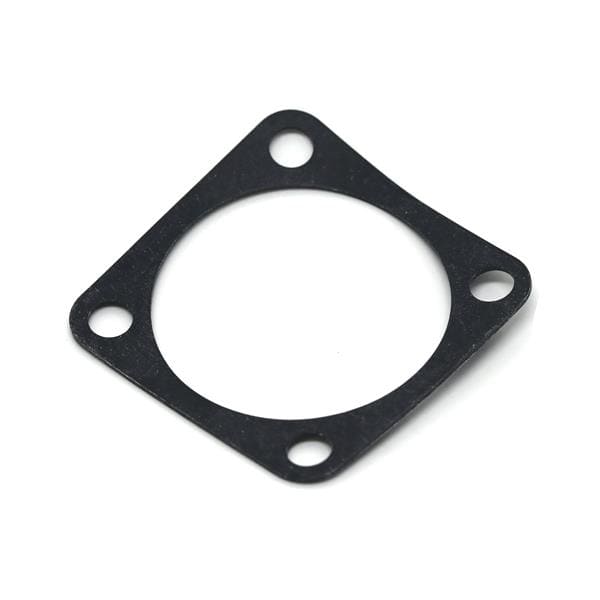

Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The MS3102R22-14S is a circular connector from the MIL-DTL 5015 Series I, designed as a box mounting receptacle with threaded coupling. It features a size 22 shell with a 22-14 contact arrangement, housing 19 size 16 socket contacts with solder cup terminations. The copper alloy contacts have hard silver plating and are rated for 22 A, with a contact resistance of 6 mΩ. Built for reliability, this connector operates in temperatures from -55°C to +125°C, offers 500 hours of salt spray resistance, and is rated for a minimum of 500 mating cycles. Its robust construction makes it suitable for demanding military, industrial, and commercial applications where a secure and durable connection is required.

Search Keywords: MS3102R2214S

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ITT CANNON
Part No:
MS3102R22-14S
Alias/AKA:
024254-0044-R
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694020
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1

IN STOCK: 0

MOQ for out of Stock Qty: 13

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
13
$62.52
25
$40.02
38
$31.26
50 +
$30.63
Log in for special pricing Click for Quote Price Match Request
