MS3126E16-26P by itt cannon

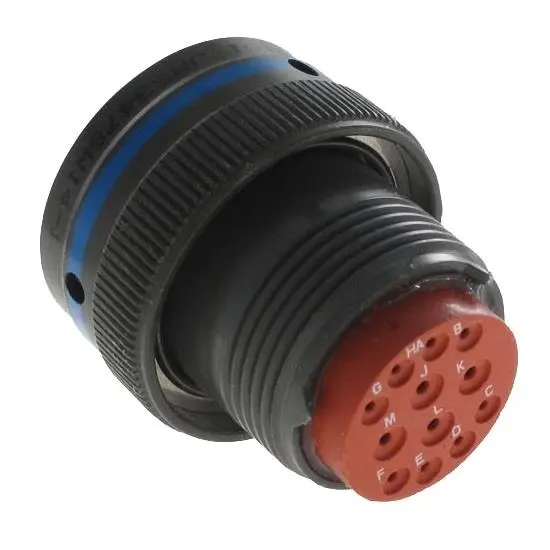

Image is representational - see manufacturer specifications
ITT CANNON Authorized Distributor

MS3126E16-26P

The MS3126E16-26P is a MIL-C-26482 Series I circular connector configured as a straight plug with a size 16 shell and 26 size-20 pin contacts for crimp termination. ...

View Datasheet Ask the Datasheet
RoHS Non-Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The MS3126E16-26P is a high-performance, environment-resistant straight plug connector compliant with MIL-C-26482 Series I specifications. It features a size 16 shell with a three-point bayonet coupling mechanism and is designated as Class E, incorporating a grommet seal for moisture protection. The connector houses a 16-26 insert arrangement with 26 size-20 pin contacts designed for crimp snap-in termination. Constructed from aluminum alloy with an olive drab chromate finish over cadmium, it operates reliably across a temperature range of -55°C to +125°C. This connector is ideal for use in industrial, military, and other demanding electronic applications where a quick-disconnect, environmentally sealed connection is required.

Search Keywords: MS3126E1626P

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ITT CANNON
Part No:
MS3126E16-26P
Alias/AKA:
065031-0005-MS, 065031-0005B
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536694020
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1

IN STOCK: 70

Can Ship immediately

MOQ for out of Stock Qty: 13

Factory Lead-Time 19 Weeks

Price (USD)

Qty
Unit Price
1
$76.64
5
$75.89
10
$64.04
13
$63.87
25
$59.73
38
$59.59
50 +
$55.53
