105-0804-001 by johnson / cinch connectivity solutions

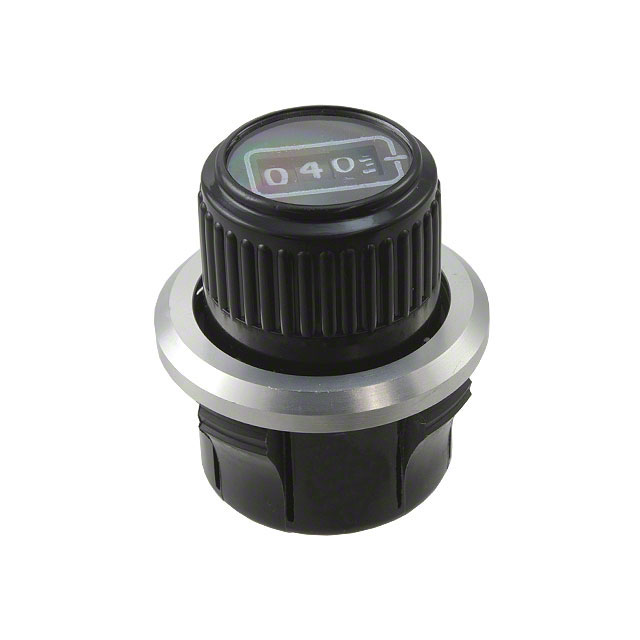

Image is representational - see mfr. specs

105-0804-001

Johnson / Cinch Connectivity Solutions

Assembly.080(2.0)Tip Jack Insulated Panel Mount, Solder Termination, Green ...

Datasheet
RoHS Compliant
BAG Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 105-0804-001 is an insulated standard tip jack connector designed for audio and signal applications requiring reliable electrical connections. It features a phosphor bronze contact with bright tin finish, a nylon 6/6 body per ASTM D4066, and a nickel-plated nut for secure mounting. The connector is rated for 10 amps continuous current with a minimum breakdown voltage of 5700 Vrms and a maximum contact resistance of 0.010 ohms, ensuring low-loss signal transmission. It accommodates standard tip plugs with 0.080 inch (2.00 mm) diameter and supports panel thicknesses up to 0.437 inches (11.10 mm). The formed contact with slotted terminal and hex socket head (0.188 inch / 4.77 mm) provides ease of mounting and reliable performance in audio equipment, test instrumentation, and consumer electronics applications.

Search Keywords: 1050804001

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Johnson / Cinch Connectivity Solutions
Part No:
105-0804-001
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
BAG
Type:
Tip Jack
Gender:
F
Body Orientation:
Straight
Mounting:
Panel Mount
Number of Contacts:
1
Wire Size:
N/A
Housing Color:
Green
Maximum Current Rating:
10 A
Operating Temperature:
N/A
Dimension:
25.78 x 9.53 mm

IN STOCK: 1,649

Can Ship immediately

Minimum Order Quantity: 100

Multiple: 100

Factory Lead-Time 17 Weeks

Price (USD)

Qty
Unit Price
100
$0.988
300
$0.938
500
$0.906
1,000
$0.824
2,500
$0.795
5,000
$0.793
7,500
$0.791
10,000 +
$0.789
Suppliers Standard Package
