142-0711-201 by johnson / cinch connectivity solutions

142-0711-201

Johnson / Cinch Connectivity Solutions

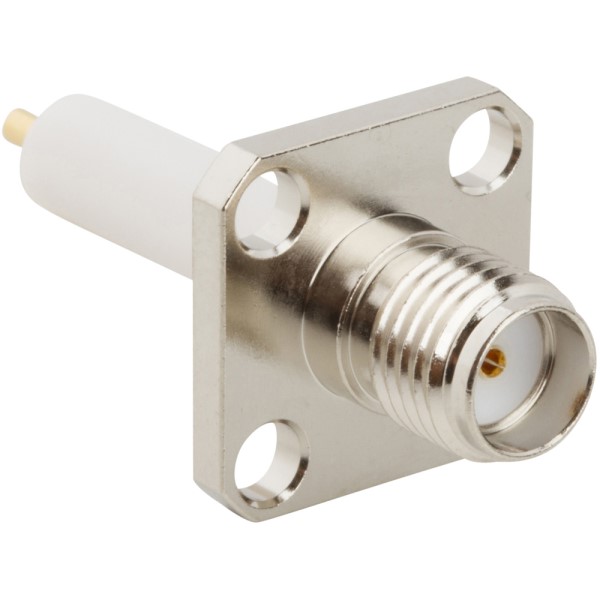

SMA Jack Assembly, Straight, PCB Surface Mount ...

Datasheet
RoHS Compliant
Bag Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The Johnson / Cinch Connectivity Solutions part 142-0711-201 is a high-quality Conn SMA connector designed for a wide range of applications. This connector has a frequency range of 0Hz to 18GHz and a 50Ohm impedance, making it suitable for both low and high-frequency applications. With its solder ST edge mount configuration, this connector ensures a secure and reliable connection. The gold-plated construction offers excellent conductivity and corrosion resistance. Whether you're working on RF amplifiers, test equipment, or other electronic devices, the Johnson / Cinch Connectivity Solutions part 142-0711-201 is a reliable choice for your connectivity needs.

Search Keywords: 1420711201

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Johnson / Cinch Connectivity Solutions
Part No:
142-0711-201
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Package Type:
Bag
Type:
SMA
Impedance:
50 Ohm
Operating Frequency:
0 to 18 Hz to GHz
Gender:
RCP
Mounting:
Surface Mount
Body Orientation:
Straight
Terminate To:
PCB
Termination Method:
Solder
Operating Temperature:
-65 to 165 °C
Dimension:
6.35 x 6.35 x 8.84 mm

IN STOCK: 7,427

Ships today, if you order in

Minimum Order: 25

Multiple: 25

Factory Lead-Time 8 Weeks

Price (USD)

Qty
Unit Price
25
$2.812
50
$2.709
100
$2.606
250
$2.462
500
$2.359
1,000
$2.256
2,500
$2.122
5,000 +
$2.009
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides
