RPLH16-01-01-02 by ledtronics

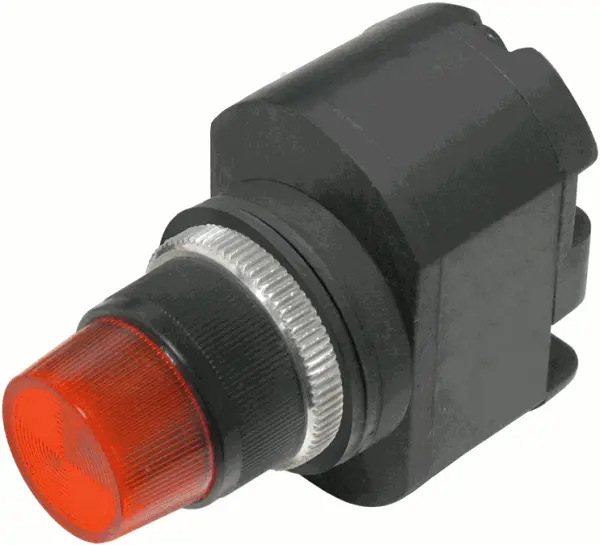

Image is representational - see mfr. specs

RPLH16-01-01-02

Ledtronics

LED Panel Mount - Relampable - Rear Mount - 5/8"(16mm) Mtg Dia - Red - 48Vdc ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The RPLH16-01-01-02 is a 16mm LED lamp holder assembly designed for 48 VDC applications, featuring a red LED lamp (635 nm wavelength) with a polycarbonate lens. The assembly operates at 48 VDC with a current draw of 0.018 A and power consumption of 0.864 W at 25 °C ambient temperature. The lamp holder is constructed with a polycarbonate body, zinc-plated steel screws with yellow chromate plating for the center bulb contact, and a steel screw for the side bulb contact. Mechanical specifications include a 16 mm diameter form factor with a mounting hole size of Ø5/8" (Ø16 mm), overall height of 2.13 inches (54.10 mm), and a weight of 0.075 lbs (1.2 oz). This lamp holder assembly is RoHS compliant and is commonly used in industrial control panels, instrumentation, and signaling applications requiring reliable visual indication in 48 VDC systems.

Search Keywords: RPLH16010102

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Ledtronics
Part No:
RPLH16-01-01-02
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541402000
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Mounting:
Panel
Dimension:
54.1 x 25.4 x 40.6 mm
Type:
Uni-Color
Maximum Forward Voltage per Color:
48 V
Color:
Red
Peak Wavelength:
N/A
Lens Shape Type:
Circular
Lens Appearance:
N/A
Lens Dimensions:
N/A
Intensity:
N/A
Viewing Angle:
N/A
Maximum Forward Current:
N/A

IN STOCK: 35

Ships today, if you order in

Factory Lead-Time 6 Weeks

Price (USD)

Qty
Unit Price
1
$44.11
5
$39.37
10
$39.26
30
$37.08
50
$32.99
100
$30.93
250 +
$29.71
