Image is representational - see mfr. specs

1010

Littelfuse/C&K

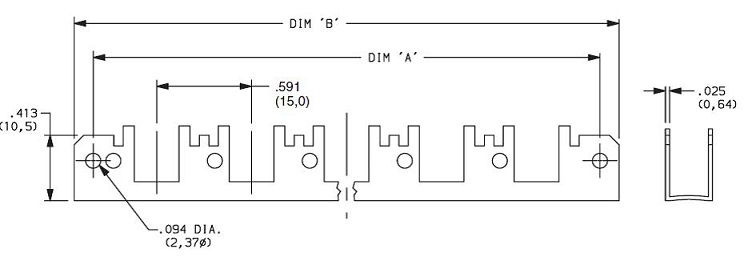

Chas FA1X (.094 Frt&btm) Frame. ...

Datasheet

RoHS Compliant

BULK Packaging

Certificate of Compliance Guarantee

DESCRIPTION

The 1010 is an F Series pushbutton switch designed for audio selection, digital equipment interface, and medical equipment applications. It supports up to 10 poles per module with various contact terminal options, mounting configurations, and switch ganging capabilities. The switch features mechanical indicator buttons and offers both silver and gold contact material options, with silver contacts rated at 50 VA/15 W (125/30 V AC/DC, 0.5 A) and gold contacts at 1 VA/300 mW (50/30 V AC/DC, 0.04 A/0.01 A). Operating life exceeds 105 operations at 24 V/200 mA for standard configurations, with contact resistance of 10 mO typical and 20 mO maximum initially. The switch operates reliably across a temperature range of -40°C to 70°C and is fully RoHS compliant, making it suitable for demanding industrial and medical applications requiring durable, multi-pole switching solutions.

Product Highlights:

Potential Applications:

Search Keywords: 1010

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Littelfuse/C&K

Part No:

1010

Alias/AKA:

C01

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Package Type:

BULK

IN STOCK: 1,701

Can Ship immediately

BONDED Quantity: 0

Manufacturer Stock: 0

Stock lot only:

Minimum Order Quantity: 50

MOQ for out of Stock Qty:

Multiple: 1

Factory Lead-Time 11 Weeks

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

Price (USD)

Qty

Unit Price

$0.7084

500

$0.4695

1,000

$0.4272

2,500

$0.4061

5,000

$0.3877

7,500

$0.3799

10,000

$0.3722

15,000 +

$0.3713

Tools/3D Models

Product Guides

Datasheet
