1101M2S3AV2QE2 by littelfuse/c-k

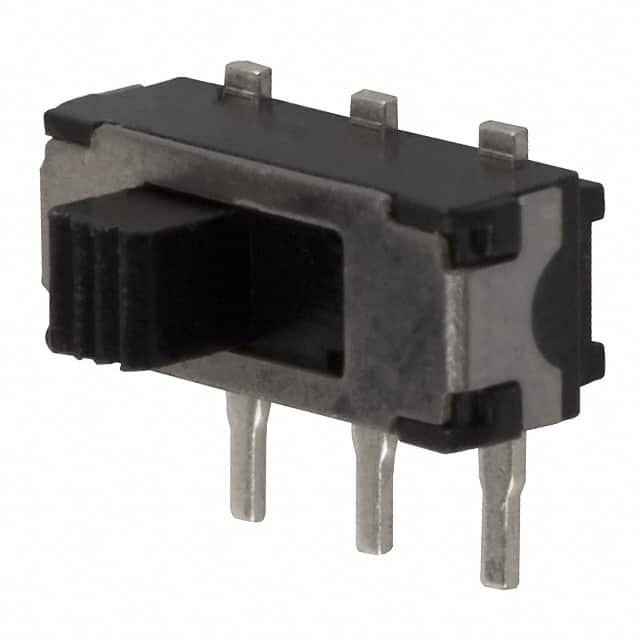

Image is representational - see mfr. specs

1101M2S3AV2QE2

Littelfuse/C&K

Miniature Slide Switch ...

Datasheet
RoHS Compliant
TRAY Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 1101M2S3AV2QE2 is a miniature slide switch from C&K Components' 1000 Series, designed as a single-pole double-throw (SPDT) configuration with vertical right-angle PC thru-hole termination featuring 150° pitch. This switch features an epoxy terminal seal compatible with bottom-wash cleaning and operates reliably over a temperature range of -30°C to 65°C. The contact resistance is below 10 mO typical at 2-4 V DC with 100 mA, and the switch supports 100,000 make-and-break cycles at full load with B, K, or P contact material. The device is ideal for test and measurement equipment, telecommunications, and computer peripherals where compact, reliable switching is required.

Search Keywords: 1101M2S3AV2QE2

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Littelfuse/C&K
Part No:
1101M2S3AV2QE2
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
853650
COO:
VN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
80
Package Type:
TRAY
Mounting:
PCB Through Hole
Body Orientation:
Vertical Right Angle
Actuator Style:
Side Slide
Pole Throw Configuration:
SPDT
Switch Configuration:
On None On
Contact Rating @ Voltage:
6@120VAC 28VDC A
Contact Plating:
Silver
Operating Temperature:
-30 to 65 °C
Termination Style:
PC Pins
Dimension:
6.6 x 23.42 x 12.7 mm

IN STOCK: 400

Ships today, if you order in

Minimum Order Quantity: 5

Factory Lead-Time 8 Weeks

Price (USD)

Qty
Unit Price
5
$7.574
80
$5.546
160
$5.213
320
$4.924
560
$4.733
1,040
$4.541
2,560
$4.519
5,040 +
$4.496
Suppliers Standard Package
