ADPDC2W04AC by littelfuse/c-k

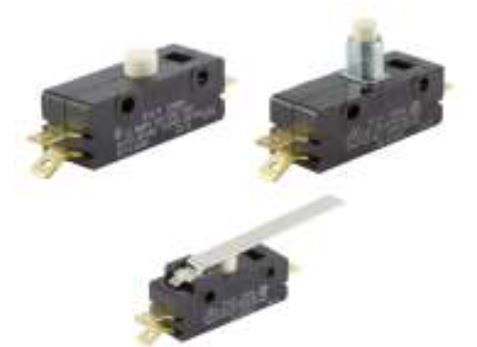

Image is representational - see mfr. specs

ADPDC2W04AC

Littelfuse/C&K

The ADPDC2W04AC is a double-pole, double-throw (DPDT) general-purpose snap-acting switch with a leaf roller actuator, rated for 15A. ...

Datasheet
RoHS Compliant
BULK Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The ADPDC2W04AC is a general-purpose snap-acting switch from the A Series, configured with double-pole, double-throw (DPDT) circuitry. It features an electrical rating of 15A at 125/250V AC and a power rating of 3/4 HP at 125V AC or 1 1/2 HP at 250V AC. This model is built with a leaf roller actuator, requires a maximum operating force of 18 oz (510g), and terminates with .250” quick connect terminals. It offers a long electrical life of 200,000 cycles at 15A and operates over a temperature range of -55°C to 85°C. These features make it suitable for demanding applications like enclosure equipment, garage door openers, and vending machines.

Search Keywords: ADPDC2W04AC

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Littelfuse/C&K
Part No:
ADPDC2W04AC
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
853650
COO:
VN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
119
Package Type:
BULK
Mounting:
Through Hole
Pole Throw Configuration:
DPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Phenolic/Leaf Roller Lever
Contact Rating @ Voltage:
1118.55 A
Maximum Movement Differential:
N/A
Operating Force:
5 N
Termination Style:
Quick Connect
Dimension:
60.97 x 16.3 x 45.74 mm
Body Orientation:
Straight
IP Rating:
N/A

IN STOCK: 171

Can Ship immediately

Minimum Order Quantity: 5

Factory Lead-Time 24 Weeks

Price (USD)

Qty
Unit Price
5
$12.71
25
$11.38
50
$10.70
119
$10.14
357
$9.26
595
$9.08
1,071 +
$9.03
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
