C331-8754-000D

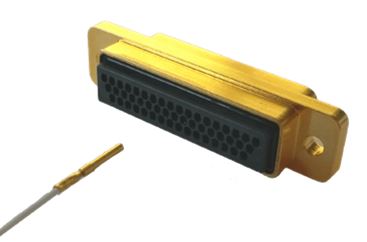

MDMB Series - Removable Socket Contact - #24 28AWG - Copper Alloy - 1.27um - Gold - Crimp - Bulk ...
DESCRIPTION
Microminiature connectors with removable crimp contacts. Specification High performance Micro-miniature connectors meet stringent tests for outgassing and residual magnetism and are suitable for use in Space Engineering Model, Avionics, Military, Medical and Industrial applications. Suitable for Board to Board, Board to Cable or Cable to Cable applications. Removable contacts. Sizes available: 9, 15, 21, 25, 31, 37 and 51 ways. Connector 9, 15, 21, 25, 31 and 37 ways, accepted wires size: 1 insulated wire AWG24, AWG26 and AWG28 (external diameter at 0.97mm max). 1 uninsulated solid wire AWG25. 2 insulated wires AWG28 (external diameter at 0.82mm max). Connector 51 ways, accepted wires size: 1 insulated wire AWG24, AWG26 and AWG28 (external diameter at 0.97mm max). 1 uninsulated solid wire AWG25. Twist Pin contact technology
Search Keywords: C3318754000D
SPECIFICATIONS
IN STOCK: 284
Ships today, if you order in
Minimum Order Quantity: 5
Factory Lead-Time 18 Weeks
Price (USD)
Tools/3D Models
Product Guides
Datasheet
