CM103J12S205QA by littelfuse/c-k

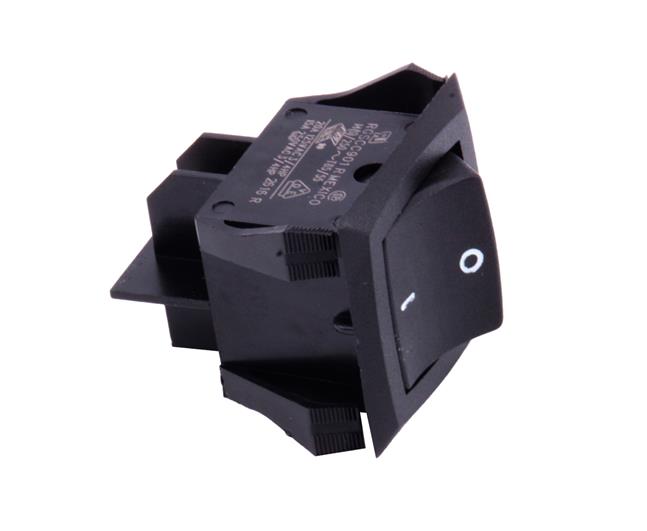

Image is representational - see mfr. specs

CM103J12S205QA

Littelfuse/C&K

Single Pole Power Rocker Switch ...

Datasheet
RoHS Compliant
TRAY Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

CM103J12S205QA is a single pole double throw (SPDT) power rocker switch with on-off-on switching function, designed for easy snap-in installation in various electronic equipment. The switch features a contact rating of 16 amps at 125 VAC (1/8 HP) and 10 amps at 250 VAC (1/3 HP), with an electrical life of 10,000 make and break cycles at full load. The housing and actuator are constructed from 6/6 nylon (UL94V-2) with silver-plated copper alloy contacts and terminals, providing reliable performance with an insulation resistance of 108 O minimum and dielectric strength of 1,500 VRMS at sea level. Operating over a temperature range of -20°C to +80°C, this switch is well-suited for computers, power supplies, industrial equipment, and small appliances where robust power switching and easy installation are required.

Search Keywords: CM103J12S205QA

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Littelfuse/C&K
Part No:
CM103J12S205QA
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
853650
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Package Type:
TRAY
Mounting:
Panel Mount
Pole Throw Configuration:
1P2T (SPDT)
Switch Configuration:
On Off On
Contact Rating @ Voltage:
248.57@(CSA/UL) A
Actuator Style:
Curved Rocker
Actuator Color:
Black
Bezel Color:
Black
Illumination:
N/R
Terminal Type:
Quick Connect
Body Orientation:
Straight

IN STOCK: 714

Ships today, if you order in

Minimum Order Quantity: 25

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
25
$4.25
50
$3.46
100
$3.45
250
$3.20
500
$3.03
1,000
$3.02
3,000
$2.87
5,000 +
$2.83
Suppliers Standard Package
