ALTERNATIVE PRODUCTS
Older Equivalent
KSA0M431LFT
KSA0M431LFT

In Stock: 438

Minimum Order: 250

VIEW PRODUCT

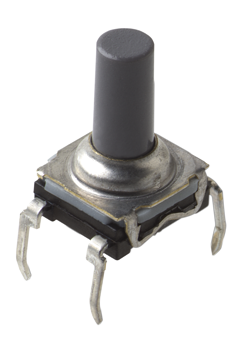

KSA0M431LFTR by littelfuse / c-k
Image is representational - see manufacturer specifications
Littelfuse / C&K Authorized Distributor

KSA0M431LFTR

Switch Tactile N.O. SPST Round Button PC Pins 0.01A 32VDC 0.2VA 100000Cycles 3N Thru-Hole Automotive Bulk ...

View Datasheet Ask the Datasheet
RoHS Compliant
OTHER Packaging
Accessories
Certificate of Compliance

DESCRIPTION

KSA0M431LFTR is a sealed tactile switch from the KSA series, designed for manual insertion with SPST normally open contact arrangement. It features gold contacts with 3 N (300 grams) actuation force and 1,000,000 operations operating life, along with IP60 sealing and double overmolding on terminals. The switch has a short hard plastic actuator (type A), PC pin terminals with optional ground pin, and is RoHS compliant with tin plating. With dimensions including a height of 4.7 ± 0.2 mm and travel to make of 0.6 ± 0.2 mm, this switch is suitable for automotive, industrial, and telecommunication network applications where reliable tactile feedback is required.

Search Keywords: KSA0M431LFTR

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Littelfuse / C&K
Part No:
KSA0M431LFTR
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536501
COO:
FR
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
5000
Package Type:
OTHER
Dimension:
7.4 x 9 x 4.7 mm
Mounting:
PCB Through Hole
Pole Throw Configuration:
SPST
Switch Configuration:
N.O.
Actuator Style:
Round Button
Operating Force:
3 N
Contact Rating @ Voltage:
0.2 A
Illumination Type:
N/R
Body Orientation:
Straight
Termination Style:
PC Pins
Seal Location:
N/A

IN STOCK: 14,576

Ships today, if you order in

MOQ for In Stock Qty: 200

MOQ for out of Stock Qty: 200

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
200
$1.26
500 +
$1.25
Log in for special pricing

Tools/3D Models

Product Guides
