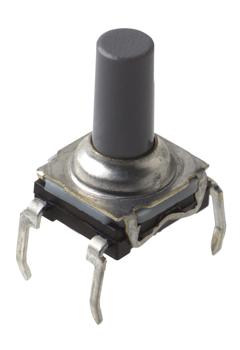

KSA1M211LFT by littelfuse/c-k
Image is representational - see manufacturer specifications
Littelfuse/C&K Authorized Distributor

KSA1M211LFT

Sealed Tact Switch ...

View Datasheet Ask the Datasheet
RoHS Compliant
Bulk Packaging
Accessories
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

KSA1M211LFT is a sealed tactile switch from the KSA & KSL Series designed for automatic or manual insertion in automotive, industrial, and telecommunication applications. The switch features SPST normally-open contact arrangement with IP60 sealing level, double overmolding on terminals, and PC pins with optional ground pin. It delivers an actuation force of 1.3 N (130 grams) with a travel to make of 0.5 ± 0.2 mm and is rated for 100,000 operations. The switch supports multiple button styles and colors, operates at maximum voltage of 32 VDC with maximum power of 1 VA (silver contacts) or 0.2 VA (gold contacts), and is RoHS compliant. Its cambered terminals ensure self-retention, making it suitable for high-reliability applications requiring sealed switching performance.

Search Keywords: KSA1M211LFT

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Littelfuse/C&K
Part No:
KSA1M211LFT
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509040
COO:
FR
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Bulk
Dimension:
7.4 x 9 x 4.7 mm
Mounting:
PCB Through Hole
Pole Throw Configuration:
SPST
Switch Configuration:
N.O.
Actuator Style:
Round Button
Operating Force:
1.8 N
Contact Rating @ Voltage:
1 A
Illumination Type:
N/R
Body Orientation:
Straight
Termination Style:
PC Pins
Seal Location:
N/A
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 1,430

Ships today, if you order in

Minimum Order Quantity: 500

Price (USD)

Qty
Unit Price
1
$0.5132
500
$0.4666
1,000
$0.3893
2,500
$0.3718
5,000
$0.3399
7,500
$0.3348
10,000
$0.3245
15,000 +
$0.3162
Log in for special pricing Click for Quote Price Match Request
