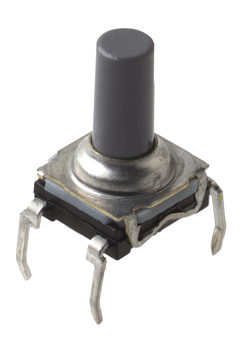

KSL1M211 by littelfuse/c-k
Image is representational - see manufacturer specifications

KSL1M211

Littelfuse/C&K

Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 100000Cycles 1.8N Thru-Hole Automotive Bulk ...

Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The KSL1M211 is a sealed tactile switch from the KSA & KSL Series designed for applications requiring reliable manual actuation in harsh environments. It features a long hard plastic actuator (KSL type) with manual bulk packaging insertion, silver contacts, and an operating force of 1.3 N (130 grams) rated for 100,000 operations. The switch provides IP60 sealing protection, SPST normally-open contact arrangement, and double overmolding on terminals with PC pins for robust mechanical retention. With a contact resistance below 100 mO, maximum voltage rating of 32 VDC, and operating temperature range of -40°C to +85°C, this switch is well-suited for automotive, industrial, and telecommunication network applications where sealed, durable switching is essential.

Search Keywords: KSL1M211

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Littelfuse/C&K
Part No:
KSL1M211
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509040
COO:
FR
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Dimension:
7.4 x 9 x 9.9 mm
Mounting:
PCB Through Hole
Pole Throw Configuration:
SPST
Switch Configuration:
N.O.
Actuator Style:
Round Button
Operating Force:
1.8 N
Contact Rating @ Voltage:
1 A
Illumination Type:
N/R
Body Orientation:
Straight
Termination Style:
PC Pins
Seal Location:
N/A
Life Cycle:
Discontinued
