MC07L1NCGF by littelfuse/c-k

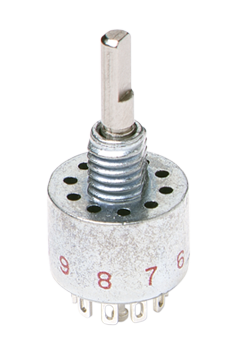

Image is representational - see mfr. specs

MC07L1NCGF

Littelfuse/C&K

Switch Rotary SP7T 7 Flatted Shaft PC Pins 0.25A 125VAC 28VDC 0.4VA ...

Datasheet
RoHS Compliant
TRAY Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

MC07L1NCGF is a single-pole rotary switch featuring 7 positions with 30° indexing and non-shorting break-before-make contacts. The switch is available with multiple actuator options including stainless steel variants (S1, S2, S3, S6) and zinc alloy options (L1, L2, L3), with actuator lengths ranging from 0.650" to 0.785" and various configurations such as flatted, round, or slotted designs. It supports both panel and PCB mounting with a 1/4-28 UNF-2A threaded bushing, and offers flexible termination options including solder lugs (Z) or PC thru-hole (C) connections. The switch carries a continuous rating of 6 amps and switching rating of 250 mA at 125 V AC or 28 V DC, with contact resistance below 20 mO typical and insulation resistance of 1010 O minimum. Operating temperature range is -30°C to +85°C with an electrical life of 10,000 make-and-break cycles at 150 mA, 125 V AC or 28 V DC. This rotary switch is ideal for test equipment, industrial equipment, and medical equipment applications requiring reliable multi-position selection.

Search Keywords: MC07L1NCGF

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Littelfuse/C&K
Part No:
MC07L1NCGF
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
853650
COO:
VN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
80
Package Type:
TRAY
Number of Positions:
7
Pole Throw Configuration:
SP7T
Actuator Length:
10.16 mm
Dimension:
13.34 x 13.34 x 25.91 mm
Actuator Style/Diameter:
Flatted Shaft/3.17
Mounting:
Panel Mount/Through Hole
Body Orientation:
Straight
Terminal Type:
PC Pins
Angle of Throw:
30 °
Contact Rating @ Voltage:
0.4@20VAC 20VDC A

IN STOCK: 58

Ships today, if you order in

MOQ for out of Stock Qty: 400

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
1
$27.57
100
$19.57
250
$18.91
400
$18.87
800
$18.82
1,200
$18.77
1,600 +
$18.73
