PTS645TL50 by littelfuse/c-k

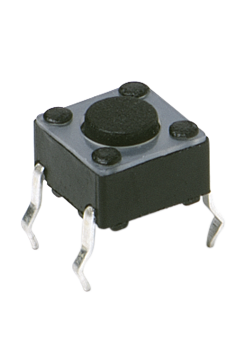

Image is representational - see mfr. specs

PTS645TL50

Littelfuse/C&K

Switch Tactile N.O. SPST Round Button PC Pins 0.05A 12VDC 100000Cycles 1.27N Thru-Hole Bulk ...

Datasheet
RoHS Non-Compliant
Packaging
Accessories
Discontinued & Replaced
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

PTS645TL50 is a subminiature tactile switch from the C&K PTS Series designed for cost-effective switching applications in consumer products, instrumentation, computer products, and hand-held devices. This 6 x 6 mm model features a 130 g typical operating force with a black actuator and a height dimension of 0.197 inches (5.0 mm), and includes an ESD pin for electrostatic discharge protection. The switch is rated for 50 mA at 12 V DC with a contact resistance of 100 milliohms maximum and an insulation resistance of 10? O minimum, delivering 100,000 mechanical and electrical operations over its lifetime. Operating across a temperature range of -10°C to 60°C with dielectric strength of 250 V AC minimum, the PTS645TL50 combines long-life contact design with multiple actuation force options, making it ideal for reliable switching in compact electronic assemblies.

Search Keywords: PTS645TL50

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Littelfuse/C&K
Part No:
PTS645TL50
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536509040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Dimension:
7.25 x 7.9 x 5 mm
Mounting:
PCB Through Hole
Pole Throw Configuration:
SPST
Switch Configuration:
N.O.
Actuator Style:
Round Button
Operating Force:
1.27 N
Contact Rating @ Voltage:
0.05@12VDC A
Illumination Type:
N/R
Body Orientation:
Straight
Termination Style:
PC Pins
Seal Location:
N/A
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock
  This product is NOT RoHS Compliant.  See Alternatives

IN STOCK: 2,570

Can Ship immediately

Minimum Order Quantity: 30

Price (USD)

Qty
Unit Price
30
$2.3999
50
$2.2660
100
$1.3287
250
$0.4707
2,000
$0.4316
5,000
$0.3924
10,000 +
$0.2485
