Y78B21110FP by littelfuse/c-k

Y78B21110FP

Littelfuse/C&K

Switch Tactile N.O. SPST Button Gull Wing 0.05A 32VDC 1VA 200000Cycles 1.2N SMD ...

Datasheet
RoHS Compliant
Reel Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The Y78B21110FP with dimensions 2.8 x 4.6 x 1.9 mm has Surface Mount mounting with SPST Pole throw configuration ,SPST switching configuration and Standard actuator. The Y78B21110FP has operating force of 1.2N and contact rating of 50mA@32V. This Sealed - IP40 switch has Gull Wing termination style with Top Actuated body orientation. Highly responsive with its excellent tactile feel and is long-lasting to withstand harsh environments. It has ultra-low current capabilities and is ideal for industrial, medical and automotive applications.

Search Keywords: Y78B21110FP

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Littelfuse/C&K
Part No:
Y78B21110FP
RoHS:
Yes
HTS:
8536509040
COO:
FR
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
7000
Package Type:
Reel
Dimension:
2.8 x 4.6 x 1.9 mm
Mounting:
PCB Surface Mount
Pole Throw Configuration:
SPST
Switch Configuration:
N.O.
Actuator Style:
Button
Operating Force:
1.2 N
Contact Rating @ Voltage:
1 A
Illumination Type:
N/R
Body Orientation:
Straight
Termination Style:
Gull Wing
Seal Location:
N/A
  Possible Replacement options available.  See Alternatives

IN STOCK: 0

Minimum Order: 1000

Factory Lead-Time 8 Weeks

Price (CAD)

Qty
Unit Price
1,000
$0.4859
2,500
$0.4443
7,000
$0.4260
14,000
$0.4146
21,000
$0.4085
28,000
$0.4022
56,000 +
$0.3962
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
Possible Replacement

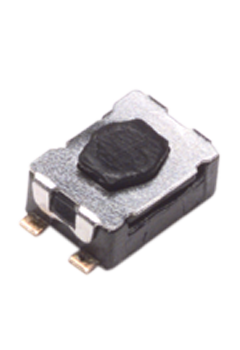

KMR211GLFS
KMR211GLFS
VIEW PRODUCT
